CC1101RGPT

CC1101RGPT Overview

Product belongs to the CC1101 series. Type: TxRx Only Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style VQFN-20 This product's 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 300 MHz to 348 MHz 391 MHz to 464 MHz 782 MHz to 928 MHz Sensitivity: -116dBm Voltage Supply Range: 1.8 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 600kbps . Serial Interfaces: SPI 12dBm Current receiving is 14.3mA ~ 17.1mA General ISM is the RF family standard. 2FSK, 4FSK, ASK, GFSK, MSK, OOK modulated The device has GPIOs. 12.3mA ~ 34.2mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. SPI interface type Maximum data rate is 500 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V The product has 1 receivers. 2-FSK 4-FSK ASK GFSK MSK OOK are the supported modulation formats. The number of transmitters is 1.

CC1101RGPT Image

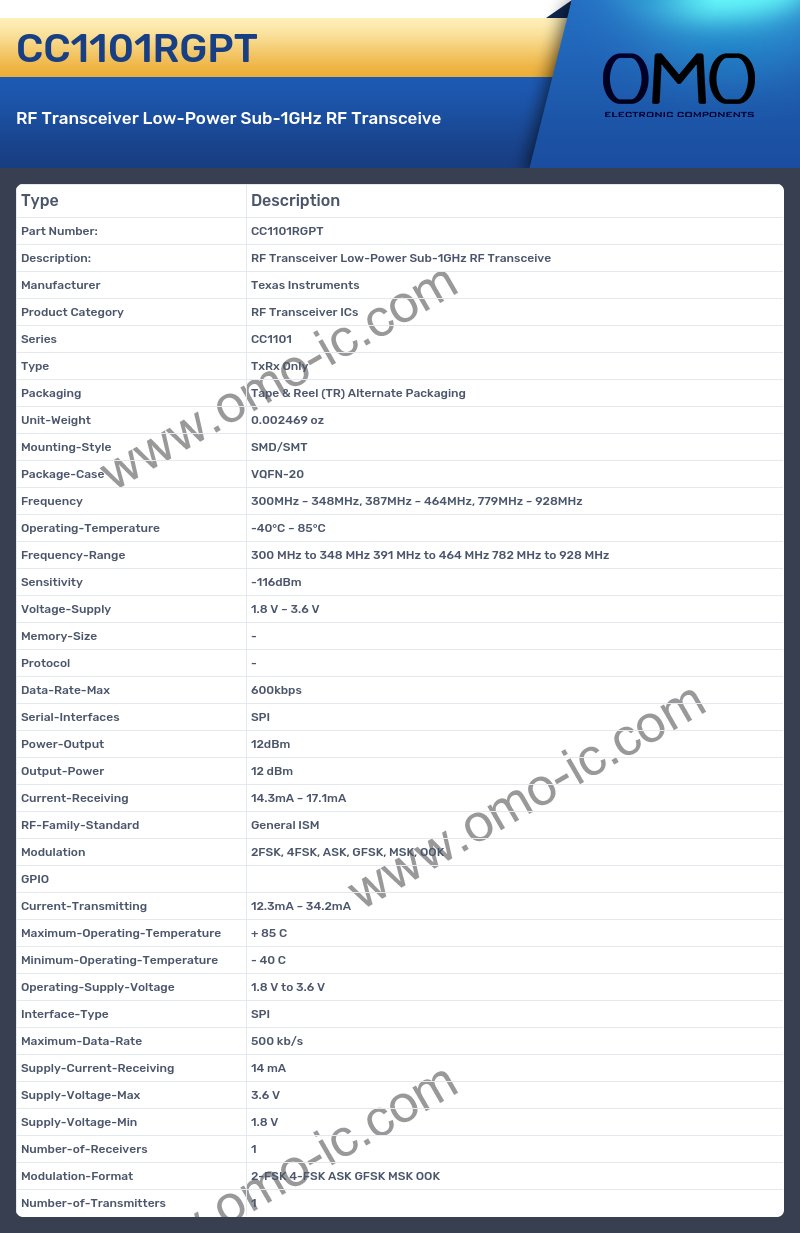

CC1101RGPT Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series CC1101
• Type TxRx Only
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-20
• Frequency 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 300 MHz to 348 MHz 391 MHz to 464 MHz 782 MHz to 928 MHz
• Sensitivity -116dBm
• Voltage-Supply 1.8 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 600kbps
• Serial-Interfaces SPI
• Power-Output 12dBm
• Output-Power 12 dBm
• Current-Receiving 14.3mA ~ 17.1mA
• RF-Family-Standard General ISM
• Modulation 2FSK, 4FSK, ASK, GFSK, MSK, OOK
• GPIO
• Current-Transmitting 12.3mA ~ 34.2mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type SPI
• Maximum-Data-Rate 500 kb/s
• Supply-Current-Receiving 14 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Number-of-Receivers 1
• Modulation-Format 2-FSK 4-FSK ASK GFSK MSK OOK
• Number-of-Transmitters 1
