BTW67-1000

BTW67-1000 Overview

Product belongs to the BTW67 series. Bulk is the packaging method for this product RD-91 Operational temperature range: -40°C ~ 125°C Chassis Mount mounting type Supplier device package: RD91 150mA of Current-Hold-Ih-Max The Voltage-Off-State is 1000V. Voltage-Gate-Trigger-Vgt-Max 1.3V 80mA of Current-Gate-Trigger-Igt-Max Maximum 1.9V On-State Voltage Its 32A Current-On-State-It-AV-Max 50A is the maximum Current-On-State-It-RMS. 10μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 580A, 610A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 1 kV Rated Repetitive Off-State Voltage VDRM; 150 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.5 V on this product. Gate-Trigger-Current-Igt: 80 mA; The 20 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 2 V at 80 A

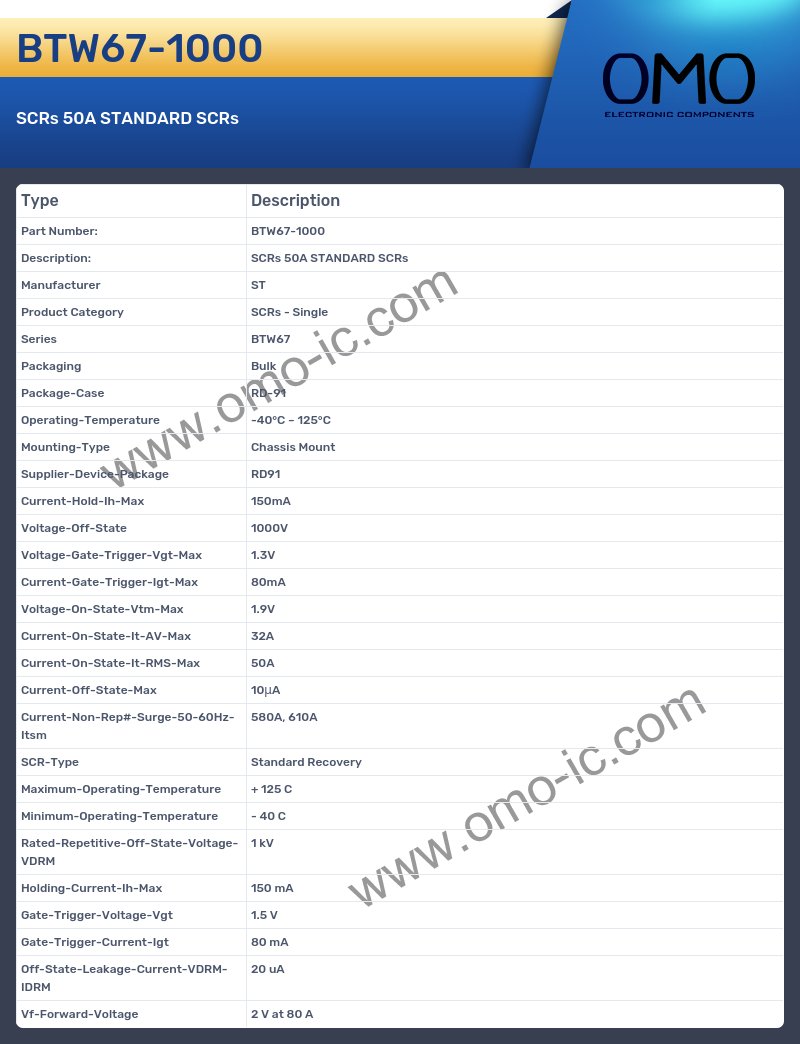

BTW67-1000 Image

BTW67-1000 Specifications

• Manufacturer ST
• Product Category SCRs - Single
• Series BTW67
• Packaging Bulk
• Package-Case RD-91
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Chassis Mount
• Supplier-Device-Package RD91
• Current-Hold-Ih-Max 150mA
• Voltage-Off-State 1000V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 80mA
• Voltage-On-State-Vtm-Max 1.9V
• Current-On-State-It-AV-Max 32A
• Current-On-State-It-RMS-Max 50A
• Current-Off-State-Max 10μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 580A, 610A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 1 kV
• Holding-Current-Ih-Max 150 mA
• Gate-Trigger-Voltage-Vgt 1.5 V
• Gate-Trigger-Current-Igt 80 mA
• Off-State-Leakage-Current-VDRM-IDRM 20 uA
• Vf-Forward-Voltage 2 V at 80 A
