BQ3285ES Overview

Product belongs to the BQ3285E series. This product is categorized as Real Time Clocks Type: Clock/Calendar Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Alarm Calendar Clock Timer Interrupt. Interface: Parallel Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 24-SOIC This product comes with a 242B memory size. This product uses a HH:MM:SS (12/24 hr) time format. The product uses a YY-MM-DD-dd date format. Voltage supply range from 2.5 V ~ 4 V The Current-Timekeeping-Max for this product is 300μA @ 5V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V This product uses an Multiplexed interface for RTC bus communication. This product features an 242 B of 256 kB for reliable real-time clock functionality.

BQ3285ES Image

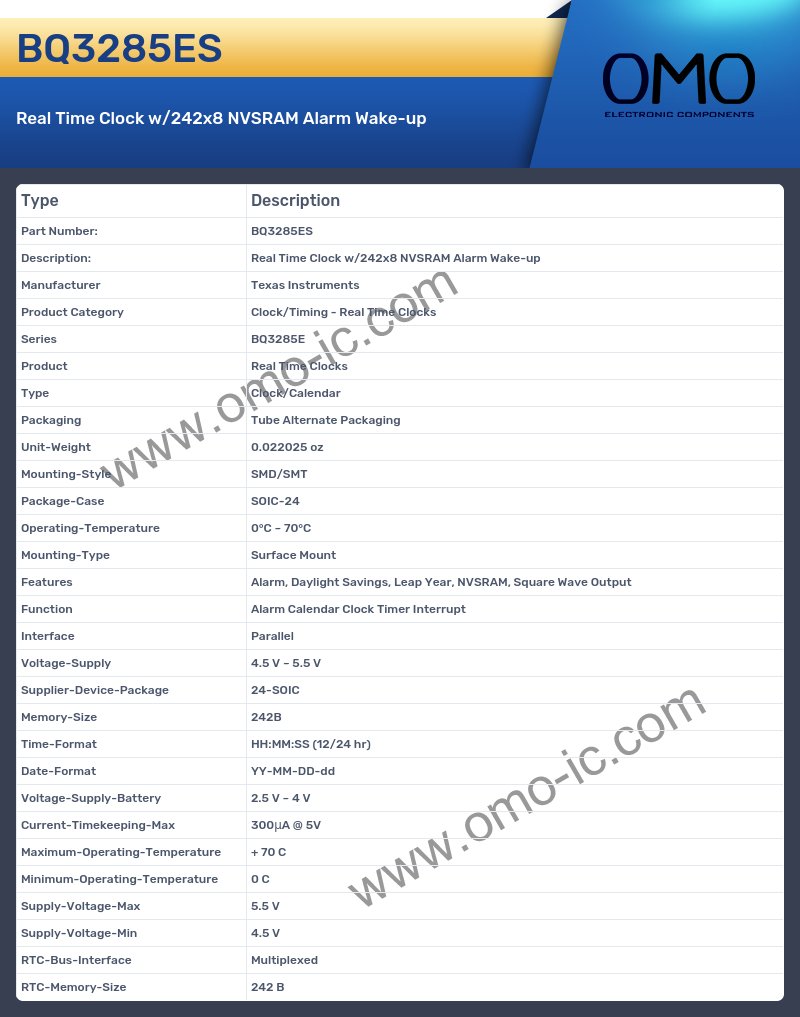

BQ3285ES Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Real Time Clocks
• Series BQ3285E
• Product Real Time Clocks
• Type Clock/Calendar
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
• Function Alarm Calendar Clock Timer Interrupt
• Interface Parallel
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 24-SOIC
• Memory-Size 242B
• Time-Format HH:MM:SS (12/24 hr)
• Date-Format YY-MM-DD-dd
• Voltage-Supply-Battery 2.5 V ~ 4 V
• Current-Timekeeping-Max 300μA @ 5V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• RTC-Bus-Interface Multiplexed
• RTC-Memory-Size 242 B
