| Mfr. #: | BD681 |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | Darlington Transistors NPN Power Darlington |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | BD681 Scheda dati |
Product belongs to the Darlingtons series. Tube is the packaging method for this product Through Hole Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: SOT-32-3 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 4A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 750 @ 1.5A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 30mA, 1.5A Power-off control: 40 W Maximum operating temperature of + 150 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 4 A This product is capable of handling a 4 A continuous collector current. Minimum hfe for DC collector-base gain is 750. 200 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

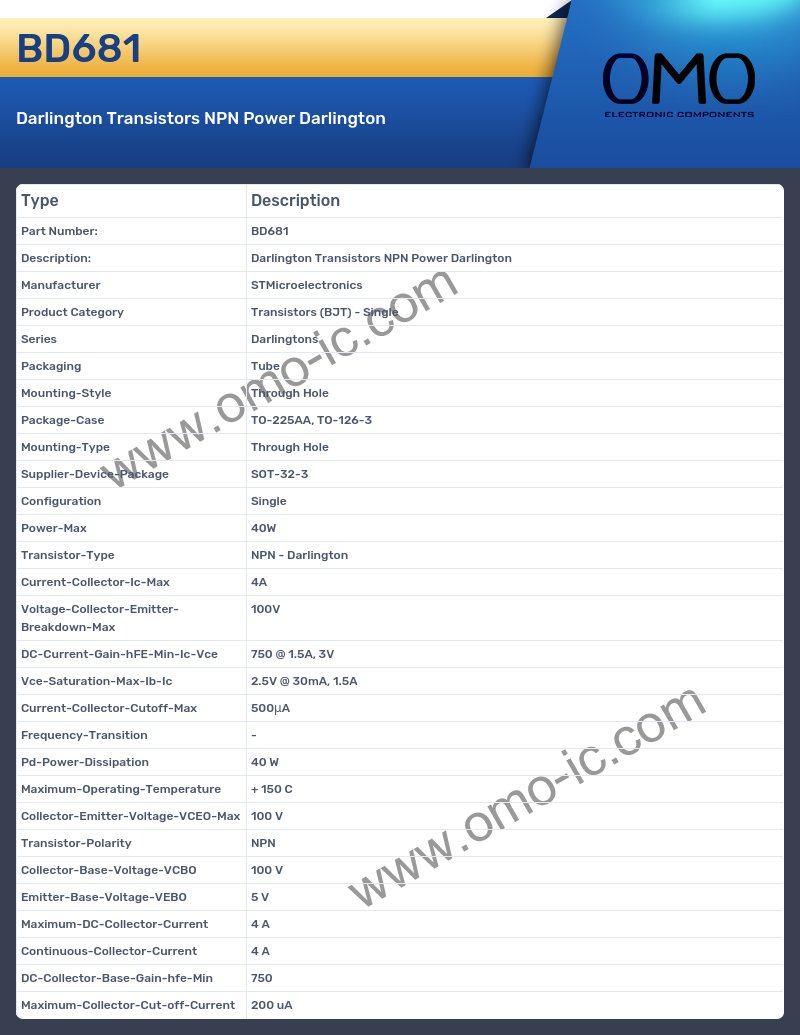

BD681 Specifications
