BAL-NRF02D3

BAL-NRF02D3 Overview

Product belongs to the BAL-NRF02D3 series. This product is categorized as Baluns Type: Balun Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 40 C to + 85 C operating temperature range for diverse applications 1.385 mm x 0.855 mm x 0.63 mm This product's 2540 MHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.4GHz ~ 2.54GHz 2540 MHz bandwidth 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 6° 1. Maximum Insertion Loss of 1.9dB; The specified Return-Loss-Min is 12dB.

BAL-NRF02D3 Image

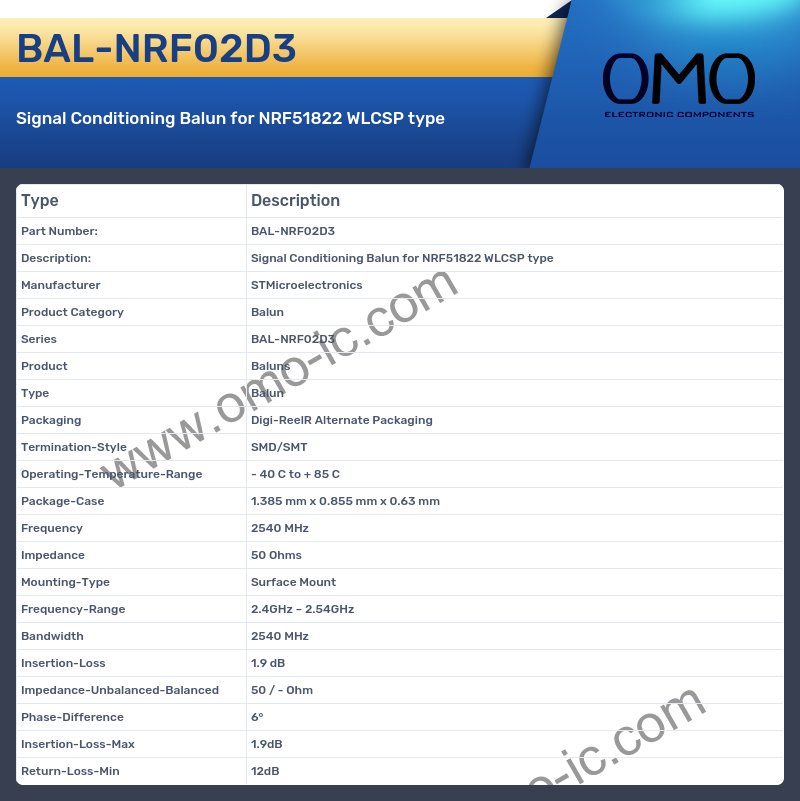

BAL-NRF02D3 Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series BAL-NRF02D3
• Product Baluns
• Type Balun
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 1.385 mm x 0.855 mm x 0.63 mm
• Frequency 2540 MHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.4GHz ~ 2.54GHz
• Bandwidth 2540 MHz
• Insertion-Loss 1.9 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 6°
• Insertion-Loss-Max 1.9dB
• Return-Loss-Min 12dB
