ATSAME70Q19A-AN

ATSAME70Q19A-AN Overview

Product belongs to the SAM E70 series. Tray Alternate Packaging is the packaging method for this product 144-LQFP Operational temperature range: -40°C ~ 105°C (TA) Supplier device package: 144-LQFP (20x20) This product has 114 I/O ports for versatile connectivity. Operating frequency: 300MHz Program memory type: FLASH CAN, EBI/EMI, Ethernet, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB interface Supply Voltage: 1.62 V ~ 3.6 V 32-Bit architecture Internal oscillator type

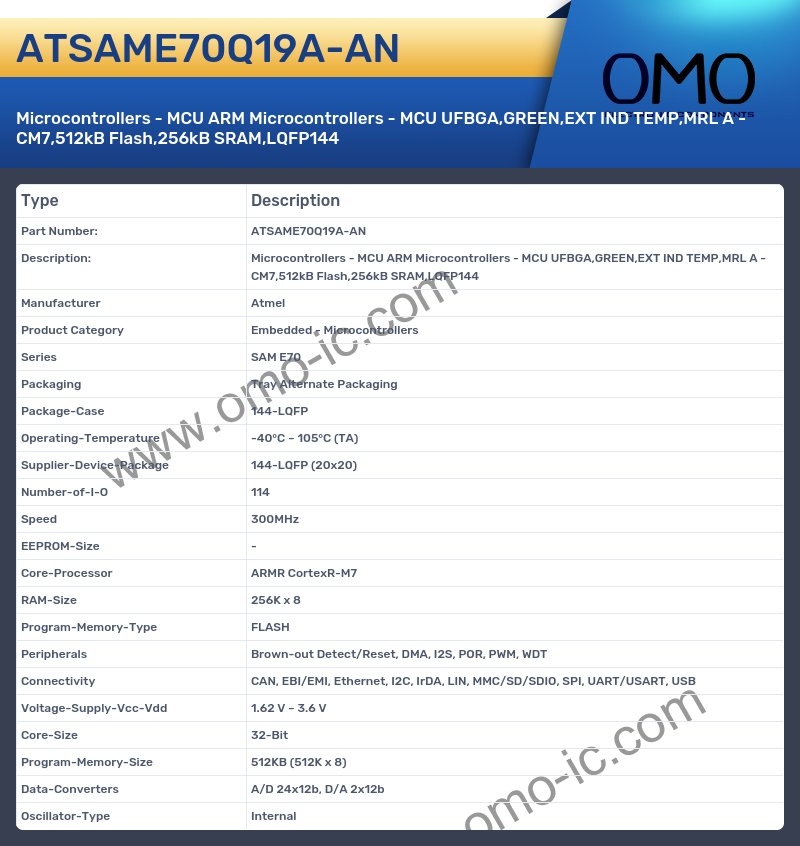

ATSAME70Q19A-AN Image

ATSAME70Q19A-AN Specifications

• Manufacturer Atmel
• Product Category Embedded - Microcontrollers
• Series SAM E70
• Packaging Tray Alternate Packaging
• Package-Case 144-LQFP
• Operating-Temperature -40°C ~ 105°C (TA)
• Supplier-Device-Package 144-LQFP (20x20)
• Number-of-I-O 114
• Speed 300MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M7
• RAM-Size 256K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
• Connectivity CAN, EBI/EMI, Ethernet, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.62 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 24x12b, D/A 2x12b
• Oscillator-Type Internal

ATSAME70Q19A-AN FAQ

• A: Is the cutoff frequency of the product Series?

  Q: Yes, the product's Series is indeed SAM E70

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tray Alternate Packaging.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is 144-LQFP.

• A: At what frequency does the Operating-Temperature?

  Q: The product Operating-Temperature is -40°C ~ 105°C (TA).

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 144-LQFP (20x20).

• A: What is the Number-of-I-O of the product?

  Q: The Number-of-I-O of the product is 114.

• A: Is the cutoff frequency of the product Speed?

  Q: Yes, the product's Speed is indeed 300MHz

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: At what frequency does the Connectivity?

  Q: The product Connectivity is CAN, EBI/EMI, Ethernet, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 1.62 V ~ 3.6 V.

• A: At what frequency does the Core-Size?

  Q: The product Core-Size is 32-Bit.

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.
