AMC1203DUB

AMC1203DUB Overview

Product belongs to the AMC1203 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.030018 oz SMD/SMT Mounting-Style SOP-8 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 1 Channel Supplier device package: 8-SOP This product's 40k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is Sigma-Delta . Internal is the reference type. 1 units Power-off control: 110 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 85 dB The AMC1203EVM. Number-of-Converters: 1 Converter 40 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 9 LSB Differential nonlinearity: +/- 1 LSB

AMC1203DUB Image

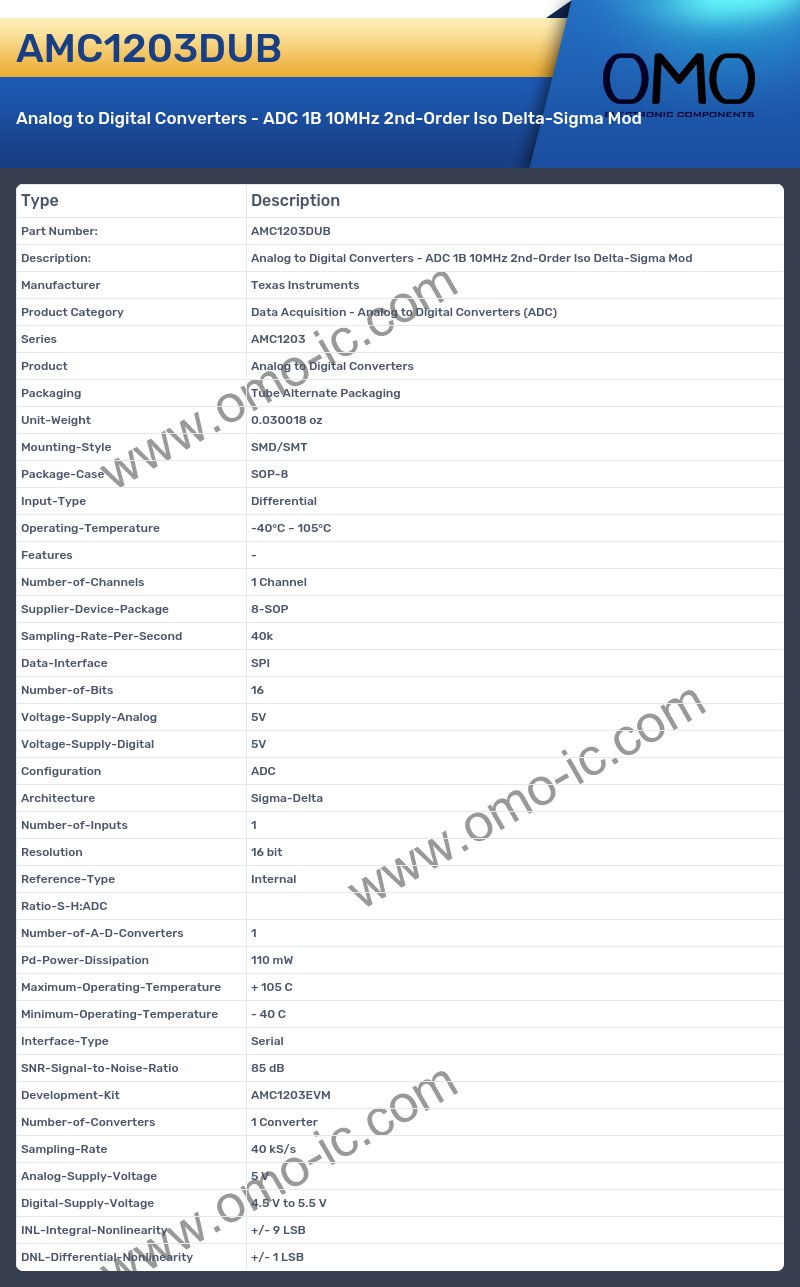

AMC1203DUB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AMC1203
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.030018 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-8
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOP
• Sampling-Rate-Per-Second 40k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 110 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 85 dB
• Development-Kit AMC1203EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 9 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
