ADV3224ACPZ

ADV3224ACPZ Overview

Product belongs to the ADV3224 series. This product is categorized as Analog Crosspoint Switches Tray is the packaging method for this product SMD/SMT Mounting-Style LFCSP-72 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Crosspoint Switch. Supplier device package: 72-LFCSP-VQ (10x10) - is 8. Voltage supply source: Analog and digital Dual Supply Configuration 16 x 8 Circuit type: 1 x 16:8 - maximum on-state resistance Voltage supply range: ±5V This product has a 52mA of 200μA. The - 1.2 GHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. The ADV3224-EVALZ. Maximum supply voltage of 5 V Minimum supply voltage is 5 V Maximum dual supply voltage: +/- 5.5 V Minimum dual supply voltage of +/- 4.5 V Dual supply type

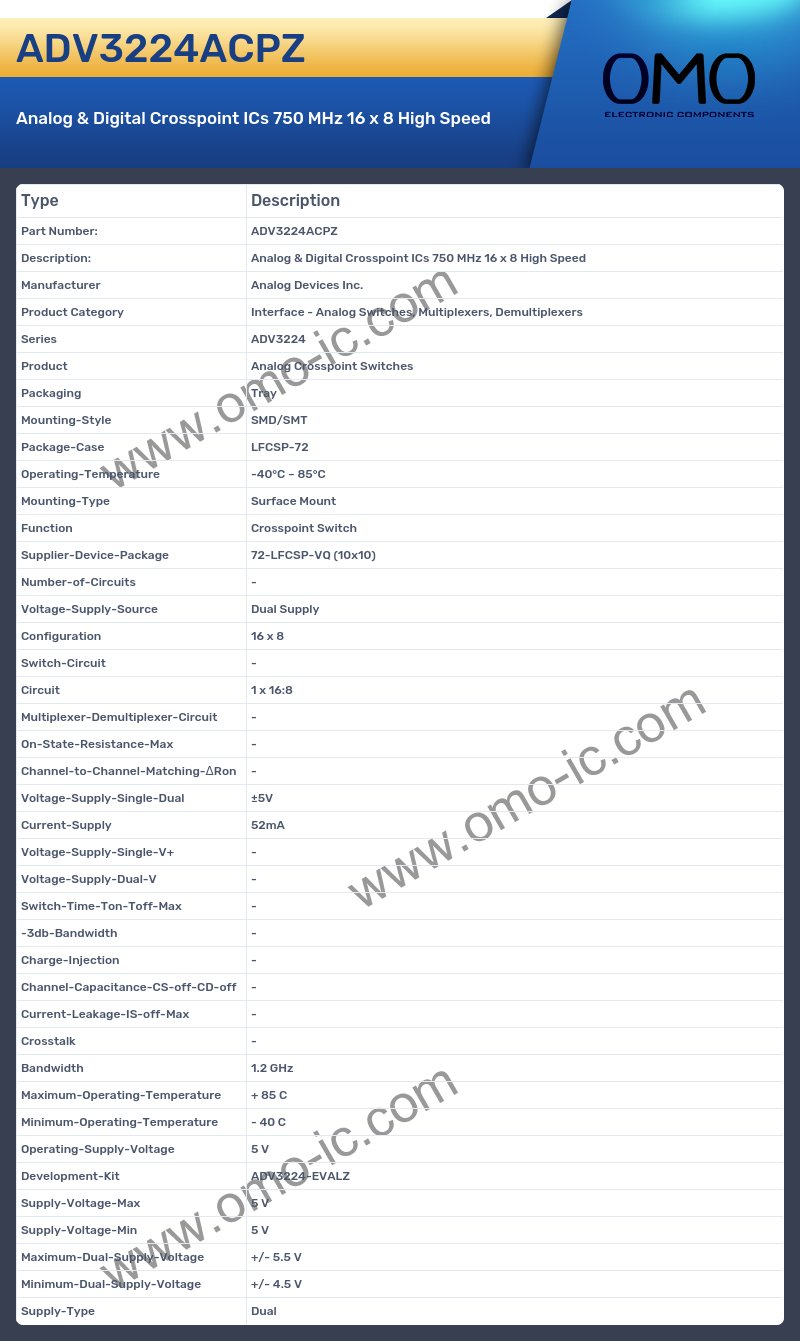

ADV3224ACPZ Image

ADV3224ACPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADV3224
• Product Analog Crosspoint Switches
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case LFCSP-72
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Crosspoint Switch
• Supplier-Device-Package 72-LFCSP-VQ (10x10)
• Number-of-Circuits -
• Voltage-Supply-Source Dual Supply
• Configuration 16 x 8
• Switch-Circuit -
• Circuit 1 x 16:8
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max -
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual ±5V
• Current-Supply 52mA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 1.2 GHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Development-Kit ADV3224-EVALZ
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 5 V
• Maximum-Dual-Supply-Voltage +/- 5.5 V
• Minimum-Dual-Supply-Voltage +/- 4.5 V
• Supply-Type Dual
