ADS8422IPFBT

ADS8422IPFBT Overview

Product belongs to the microPOWER series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 48-TQFP (7x7) This product's 4M. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 93 dB The ADS8422EVM. Number-of-Converters: 1 Converter 4 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 6 LSB Differential nonlinearity: +/- 2 LSB

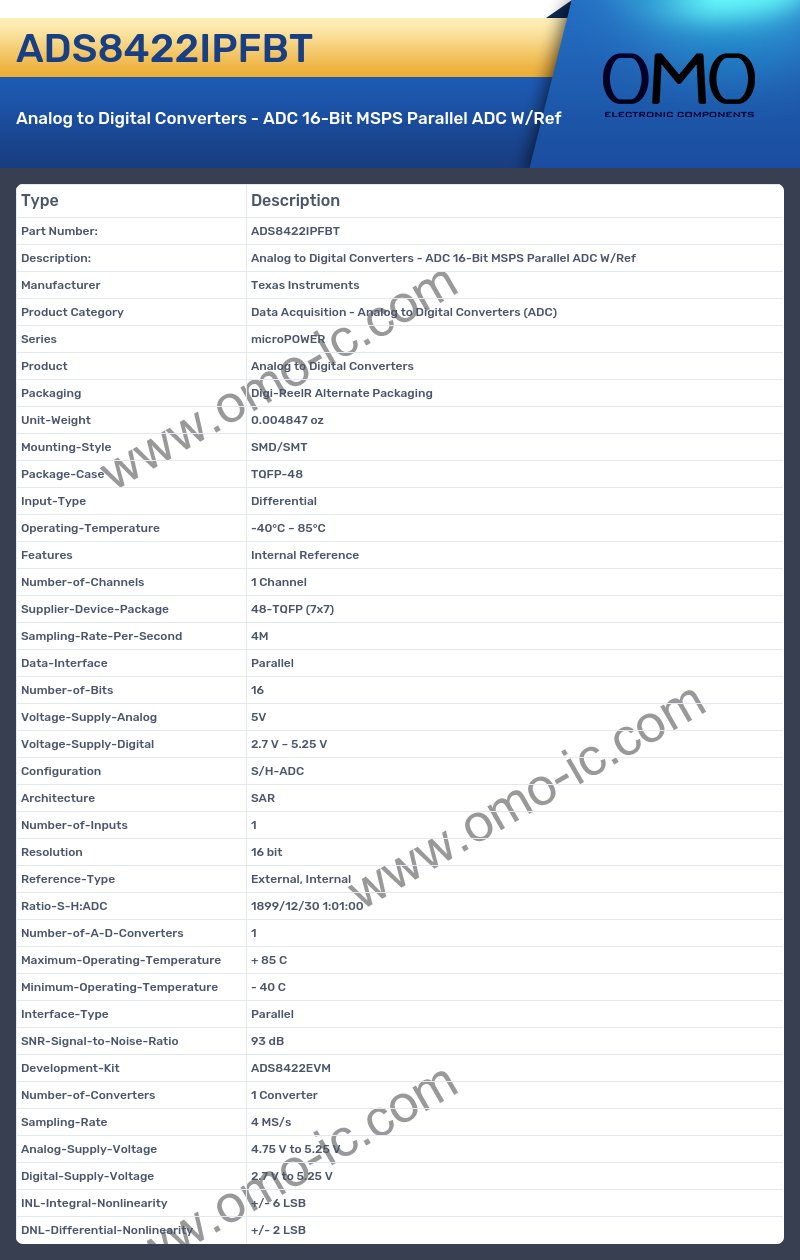

ADS8422IPFBT Image

ADS8422IPFBT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series microPOWER
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Sampling-Rate-Per-Second 4M
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 93 dB
• Development-Kit ADS8422EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 4 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 6 LSB
• DNL-Differential-Nonlinearity +/- 2 LSB
