ADS7961SRHBT

ADS7961SRHBT Overview

Product belongs to the microPOWER series. This product is categorized as Analog to Digital Converters Type: Precision ADC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 16 Channel Supplier device package: 32-VQFN (5x5) This product's 1M. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 49 dB Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3.3 V Integral Nonlinearity: 0.3 LSB Reference voltage is 2.5 V . Differential nonlinearity: 0.3 LSB SFDR: - 78 dB Total Harmonic Distortion: - 75 dB Full power bandwidth of 47 MHz

ADS7961SRHBT Image

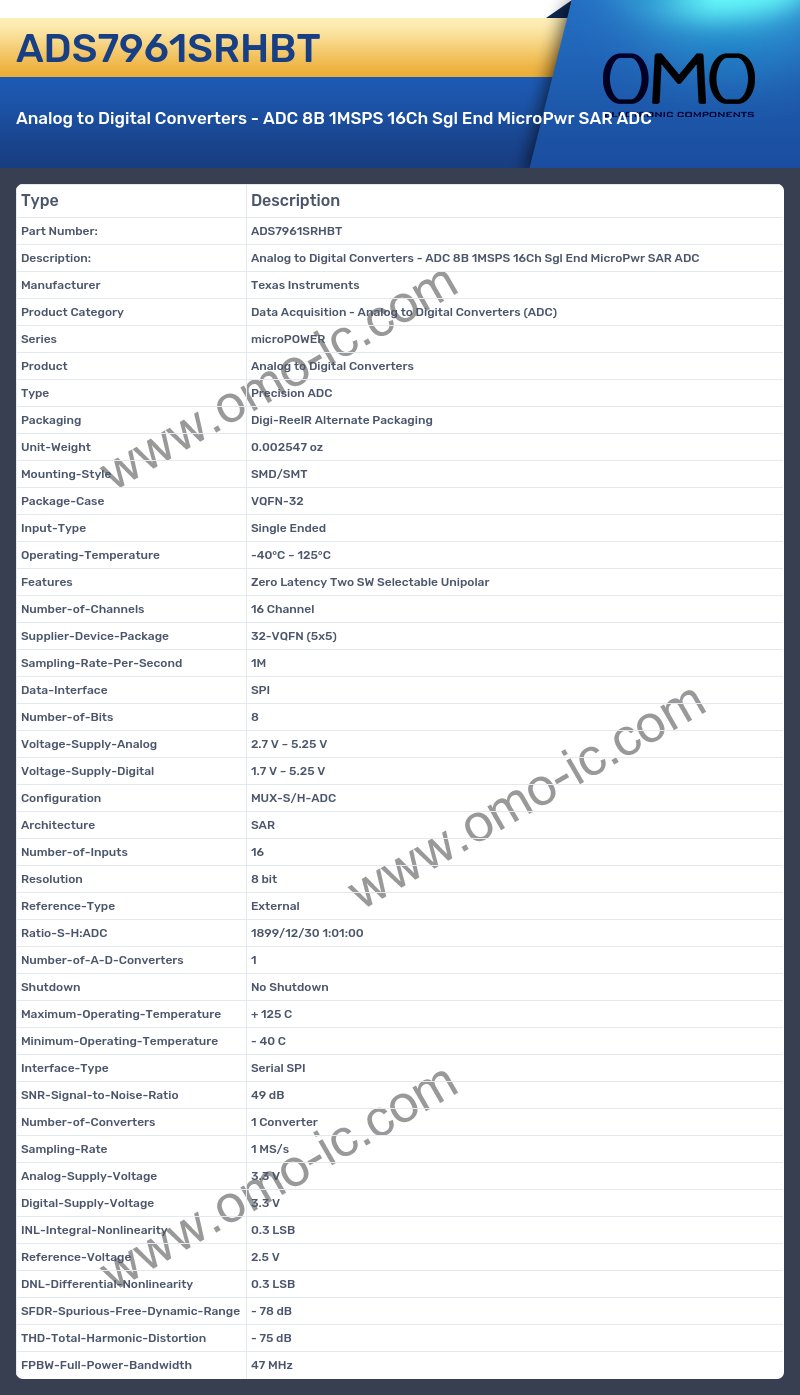

ADS7961SRHBT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series microPOWER
• Product Analog to Digital Converters
• Type Precision ADC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features Zero Latency Two SW Selectable Unipolar
• Number-of-Channels 16 Channel
• Supplier-Device-Package 32-VQFN (5x5)
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 1.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 16
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 49 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3.3 V
• INL-Integral-Nonlinearity 0.3 LSB
• Reference-Voltage 2.5 V
• DNL-Differential-Nonlinearity 0.3 LSB
• SFDR-Spurious-Free-Dynamic-Range - 78 dB
• THD-Total-Harmonic-Distortion - 75 dB
• FPBW-Full-Power-Bandwidth 47 MHz
