ADS7865IPBSR

ADS7865IPBSR Overview

Product belongs to the ADS7865 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002568 oz SMD/SMT Mounting-Style TQFP-32 The Differential, Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel/6 Channel Supplier device package: 32-TQFP (5x5) This product's 2M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 2 units Power-off control: 44 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 71.7 dB Number-of-Converters: 2 Converter 2 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 1.25 LSB Differential nonlinearity: +/- 1 LSB

ADS7865IPBSR Image

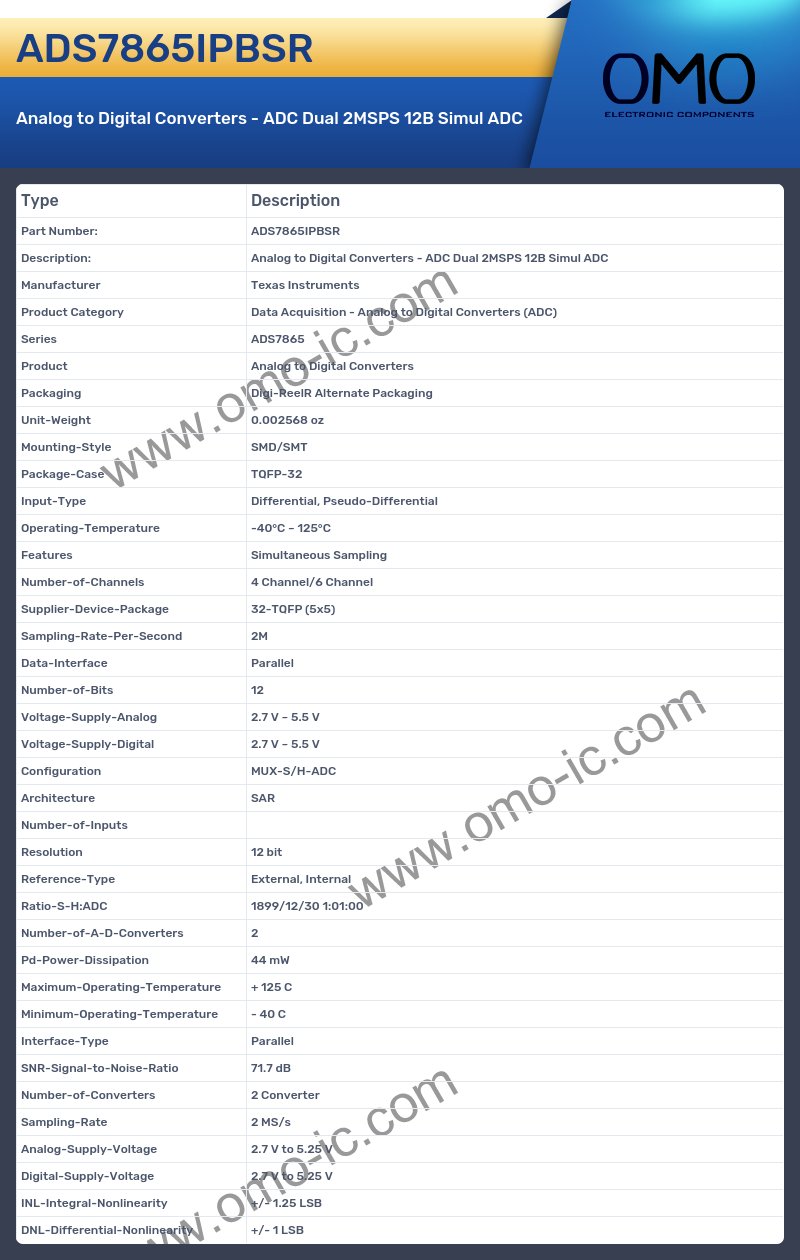

ADS7865IPBSR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7865
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002568 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-32
• Input-Type Differential, Pseudo-Differential
• Operating-Temperature -40°C ~ 125°C
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel/6 Channel
• Supplier-Device-Package 32-TQFP (5x5)
• Sampling-Rate-Per-Second 2M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 44 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71.7 dB
• Number-of-Converters 2 Converter
• Sampling-Rate 2 MS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.25 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
