ADS6422IRGCR

ADS6422IRGCR Overview

Product belongs to the ADS6422 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008021 oz SMD/SMT Mounting-Style VQFN-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 4 Channel Supplier device package: 64-VQFN (9x9) This product's 65M. Data-Interface: LVDS - Serial 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 4 units Power-off control: 1250 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 1-Wire 2-Wire interface type Signal-to-Noise Ratio of 71 dB The ADS6422EVM. Number-of-Converters: 4 Converter 65 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: - 0.9 /1.8 LSB

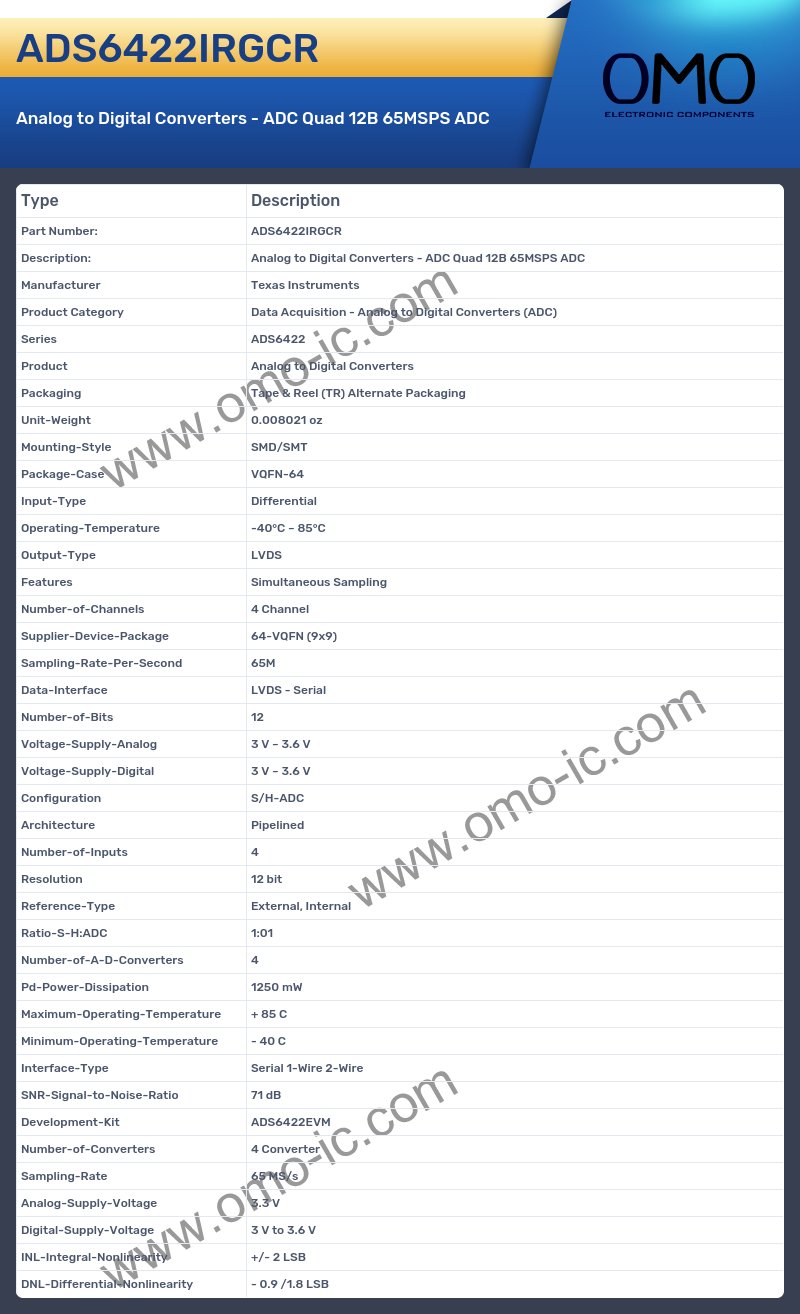

ADS6422IRGCR Image

ADS6422IRGCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS6422
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.008021 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Sampling-Rate-Per-Second 65M
• Data-Interface LVDS - Serial
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 4
• Pd-Power-Dissipation 1250 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 1-Wire 2-Wire
• SNR-Signal-to-Noise-Ratio 71 dB
• Development-Kit ADS6422EVM
• Number-of-Converters 4 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity - 0.9 /1.8 LSB
