ADS62C17IRGCR

ADS62C17IRGCR Overview

Product belongs to the ADS62C17 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.007383 oz SMD/SMT Mounting-Style VQFN-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 2 Channel Supplier device package: 64-VQFN (9x9) This product's 200M. Data-Interface: LVDS - Parallel, Parallel 11 bits The Voltage-Supply-Analog is 3.15 V ~ 3.8 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 2 units Power-off control: 1025 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel Serial interface type Signal-to-Noise Ratio of 67 dB The ADS62C17EVM. Number-of-Converters: 2 Converter 200 MS/s Sampling Rate Analog supply voltage: 3.15 V to 3.8 V Digital Supply Voltage: 1.7 V to 1.9 V Integral Nonlinearity: +/- 2.5 LSB Differential nonlinearity: +/- 0.6 LSB

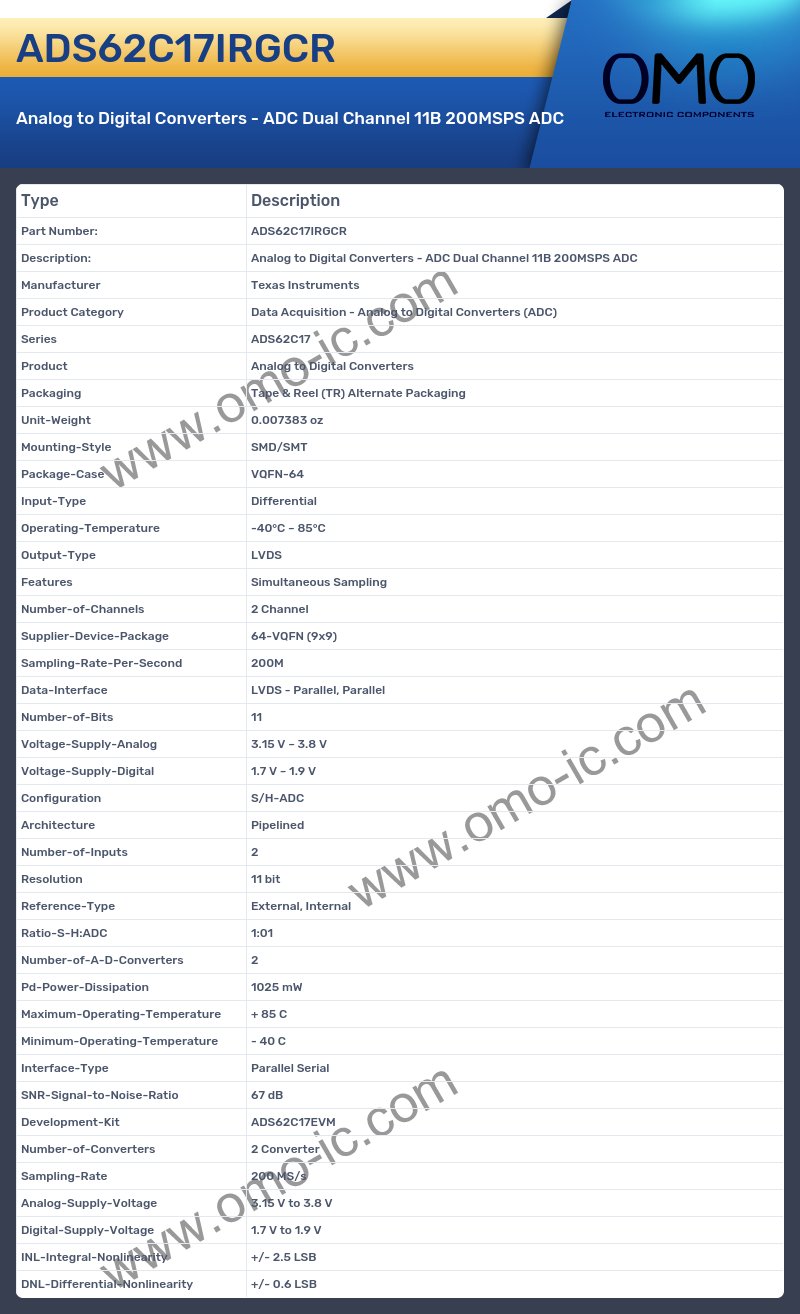

ADS62C17IRGCR Image

ADS62C17IRGCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS62C17
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.007383 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Sampling-Rate-Per-Second 200M
• Data-Interface LVDS - Parallel, Parallel
• Number-of-Bits 11
• Voltage-Supply-Analog 3.15 V ~ 3.8 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 2
• Resolution 11 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 1025 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel Serial
• SNR-Signal-to-Noise-Ratio 67 dB
• Development-Kit ADS62C17EVM
• Number-of-Converters 2 Converter
• Sampling-Rate 200 MS/s
• Analog-Supply-Voltage 3.15 V to 3.8 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
• INL-Integral-Nonlinearity +/- 2.5 LSB
• DNL-Differential-Nonlinearity +/- 0.6 LSB
