ADS58H40IZCRR

ADS58H40IZCRR Overview

Product belongs to the ADS58H40 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style NFBGA-144 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 4 Channel Supplier device package: 144-NFBGA (10x10) This product's 250M. Data-Interface: LVDS - Parallel 14 bits The Voltage-Supply-Analog is 1.8 V ~ 2 V, 3.15 V ~ 3.45 V. The Voltage Supply Digital for this product is 1.7 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 2 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 71 dB 250 MS/s Sampling Rate Analog supply voltage: 1.8 V to 3.45 V Digital Supply Voltage: 1.7 V to 2 V

ADS58H40IZCRR Image

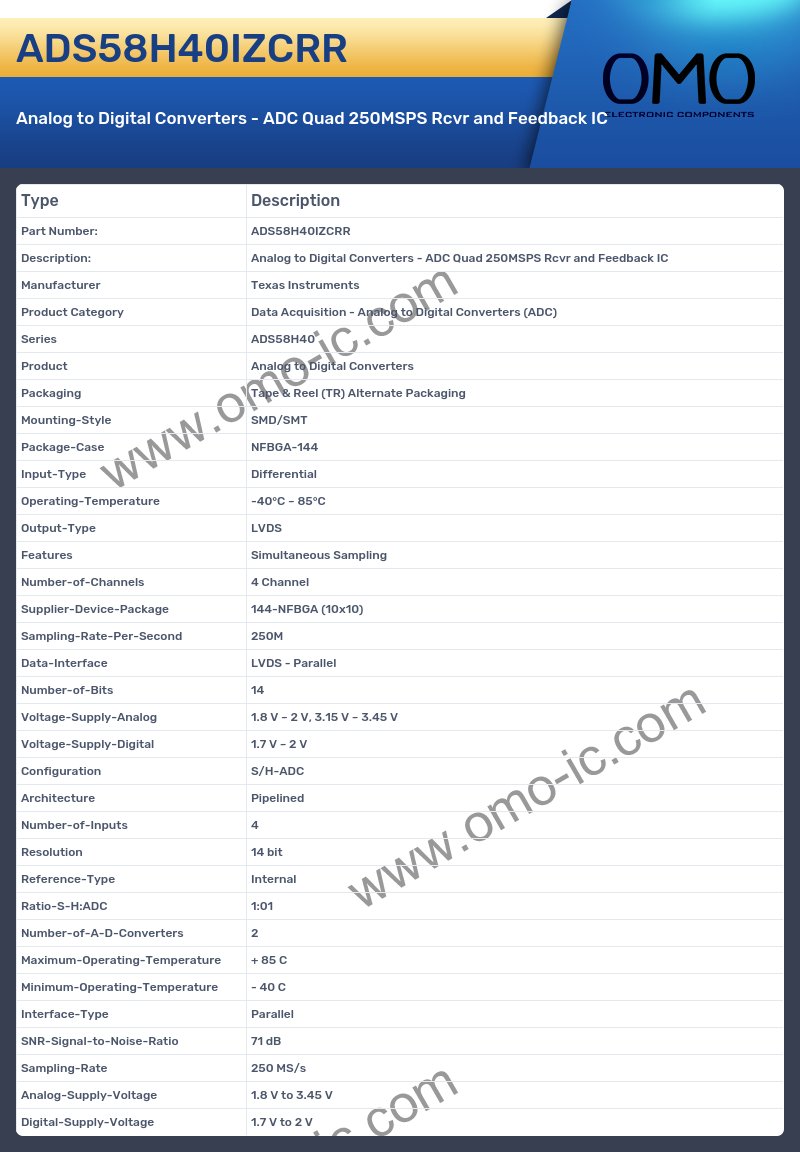

ADS58H40IZCRR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS58H40
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case NFBGA-144
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 144-NFBGA (10x10)
• Sampling-Rate-Per-Second 250M
• Data-Interface LVDS - Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 1.8 V ~ 2 V, 3.15 V ~ 3.45 V
• Voltage-Supply-Digital 1.7 V ~ 2 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 14 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71 dB
• Sampling-Rate 250 MS/s
• Analog-Supply-Voltage 1.8 V to 3.45 V
• Digital-Supply-Voltage 1.7 V to 2 V
