ADS5560IRGZT

ADS5560IRGZT Overview

Product belongs to the ADS5560 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004868 oz SMD/SMT Mounting-Style VQFN-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 1 Channel Supplier device package: 48-VQFN (7x7) This product's 40M. Data-Interface: LVDS - Parallel, Parallel 16 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: 810 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 84.3 dB Number-of-Converters: 1 Converter 40 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 8.5 LSB Differential nonlinearity: - 0.95 /3 LSB

ADS5560IRGZT Image

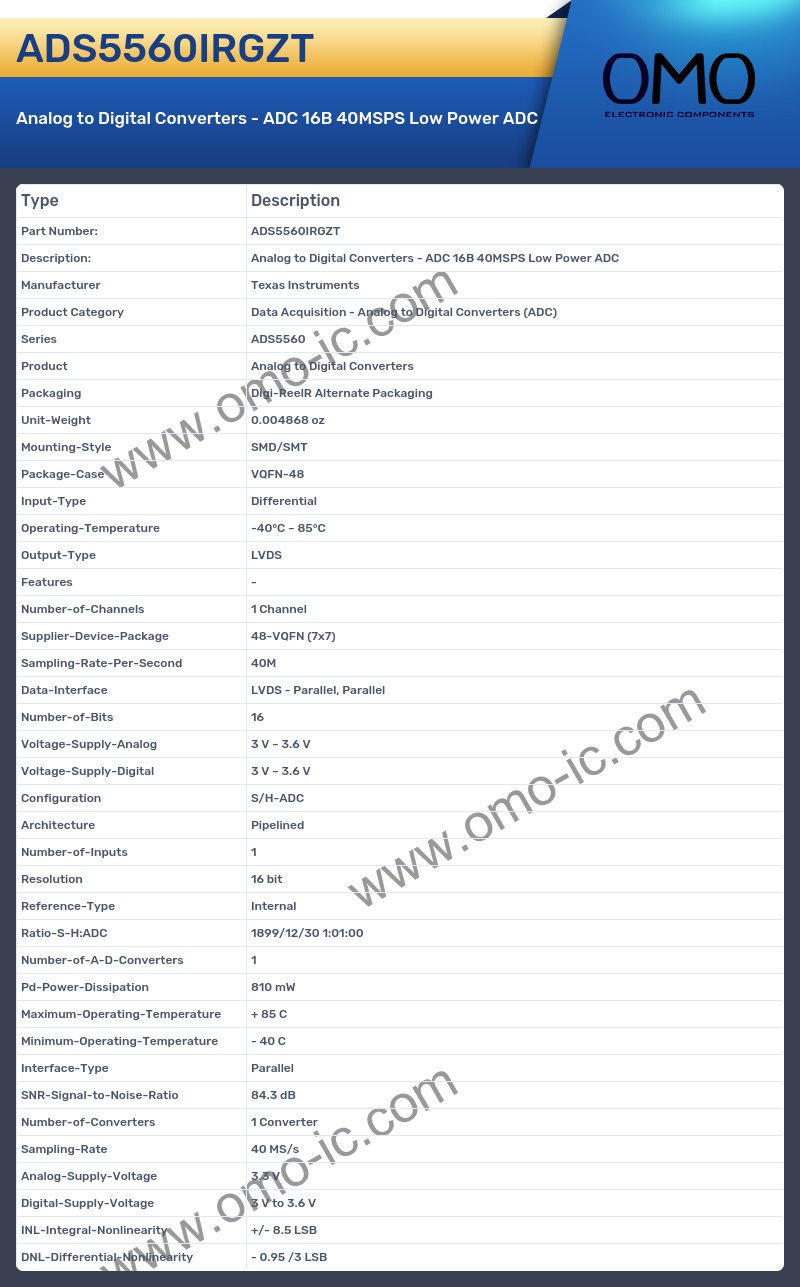

ADS5560IRGZT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5560
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004868 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-VQFN (7x7)
• Sampling-Rate-Per-Second 40M
• Data-Interface LVDS - Parallel, Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 810 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 84.3 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 40 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 8.5 LSB
• DNL-Differential-Nonlinearity - 0.95 /3 LSB
