ADS54T01IZAY

ADS54T01IZAY Overview

Product belongs to the ADS54T01 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style NFBGA-196 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: DDR LVDS Number of channels: 1 Channel Supplier device package: 196-NFBGA (12x12) This product's 750M. Data-Interface: LVDS - Parallel 12 bits The Voltage-Supply-Analog is 1.7 V ~ 1.9 V, 3.15 V ~ 3.45 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: 1.2 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 61.2 dB Number-of-Converters: 1 Converter 750 MS/s Sampling Rate Analog supply voltage: 3.15 V to 3.45 V Digital Supply Voltage: 1.7 V to 1.9 V

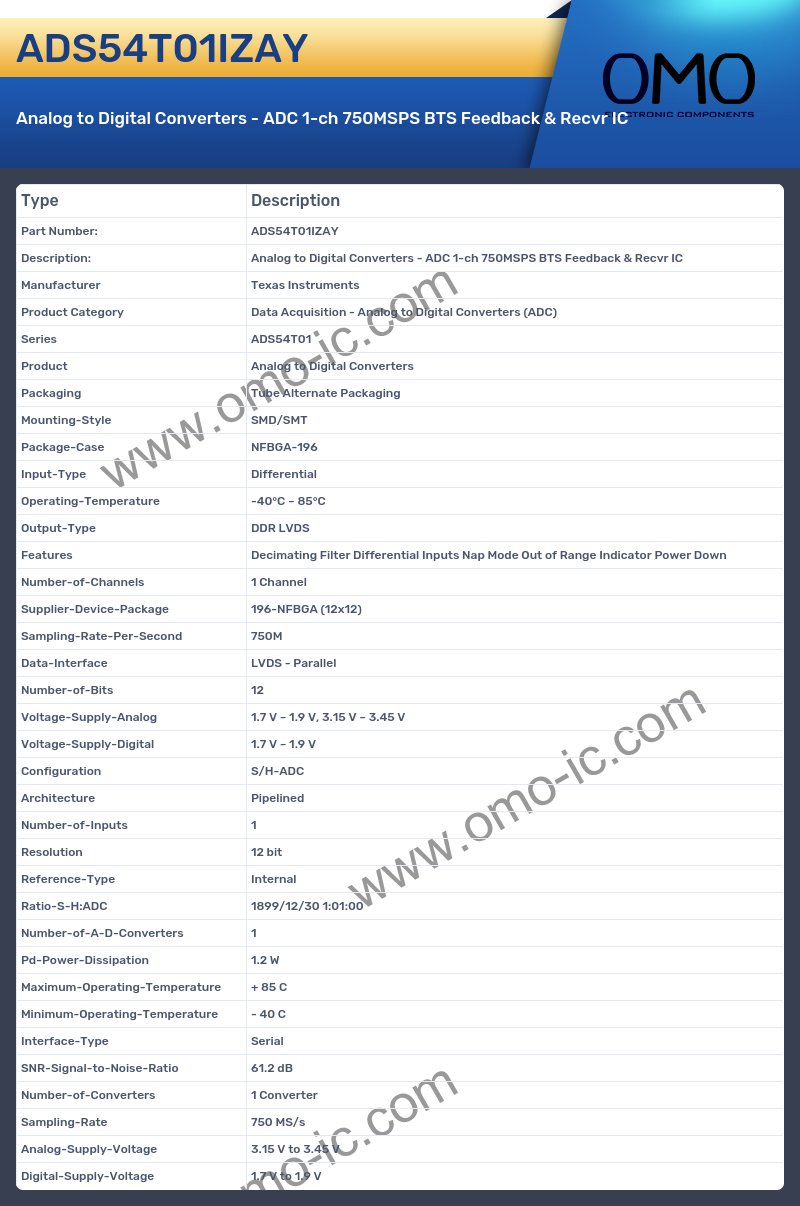

ADS54T01IZAY Image

ADS54T01IZAY Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS54T01
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case NFBGA-196
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type DDR LVDS
• Features Decimating Filter Differential Inputs Nap Mode Out of Range Indicator Power Down
• Number-of-Channels 1 Channel
• Supplier-Device-Package 196-NFBGA (12x12)
• Sampling-Rate-Per-Second 750M
• Data-Interface LVDS - Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 1.7 V ~ 1.9 V, 3.15 V ~ 3.45 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 61.2 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 750 MS/s
• Analog-Supply-Voltage 3.15 V to 3.45 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
