ADS54J54IRGCT

ADS54J54IRGCT Overview

Product belongs to the ADS54J54 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product 64-VFQFN Exposed Pad The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 64-VQFN (9x9) This product's 500M. Data-Interface: JESD204B 14 bits The Voltage-Supply-Analog is 1.8 V ~ 2 V, 3.15 V ~ 3.45 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External is the reference type. 4 units 500 MS/s Sampling Rate Analog supply voltage: 1.9 V Digital Supply Voltage: 1.7 V to 1.9 V

ADS54J54IRGCT Image

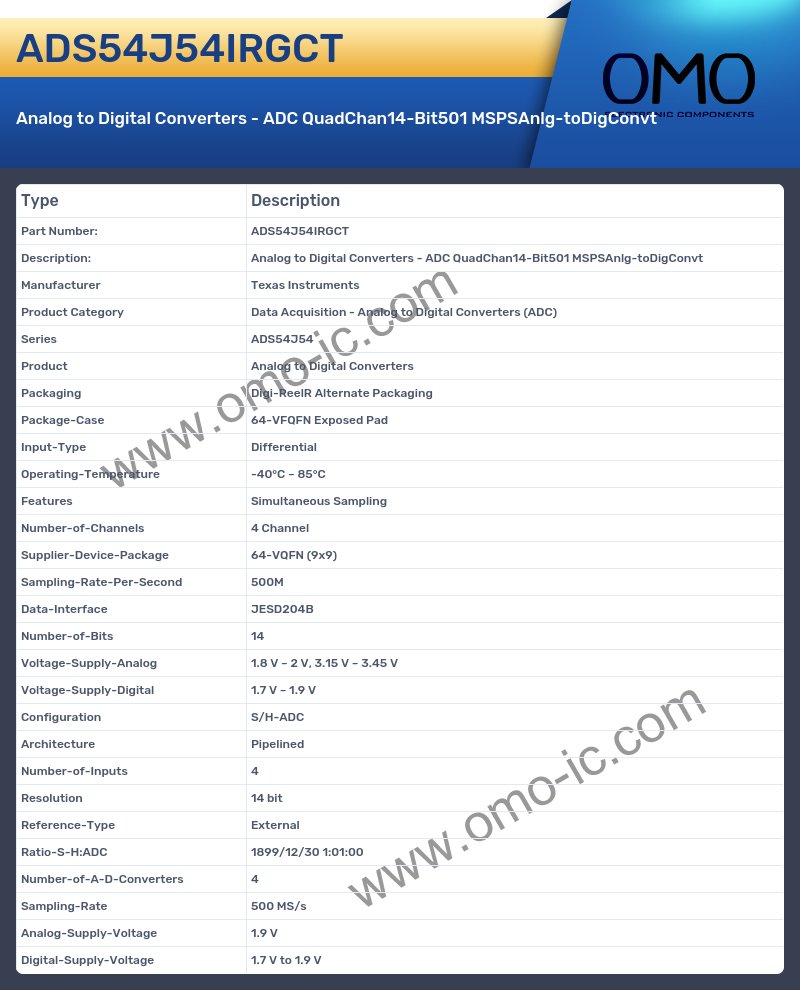

ADS54J54IRGCT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS54J54
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 64-VFQFN Exposed Pad
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Sampling-Rate-Per-Second 500M
• Data-Interface JESD204B
• Number-of-Bits 14
• Voltage-Supply-Analog 1.8 V ~ 2 V, 3.15 V ~ 3.45 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 14 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 4
• Sampling-Rate 500 MS/s
• Analog-Supply-Voltage 1.9 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
