ADS5422Y/250

ADS5422Y/250 Overview

Product belongs to the ADS5422 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012088 oz SMD/SMT Mounting-Style LQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: CMOS Number of channels: 1 Channel Supplier device package: 64-LQFP (10x10) This product's 62M. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 1.4 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 73 dB The ADS5422EVM. Number-of-Converters: 1 Converter 62 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5 V Integral Nonlinearity: +/- 4 LSB Differential nonlinearity: +/- 1 LSB

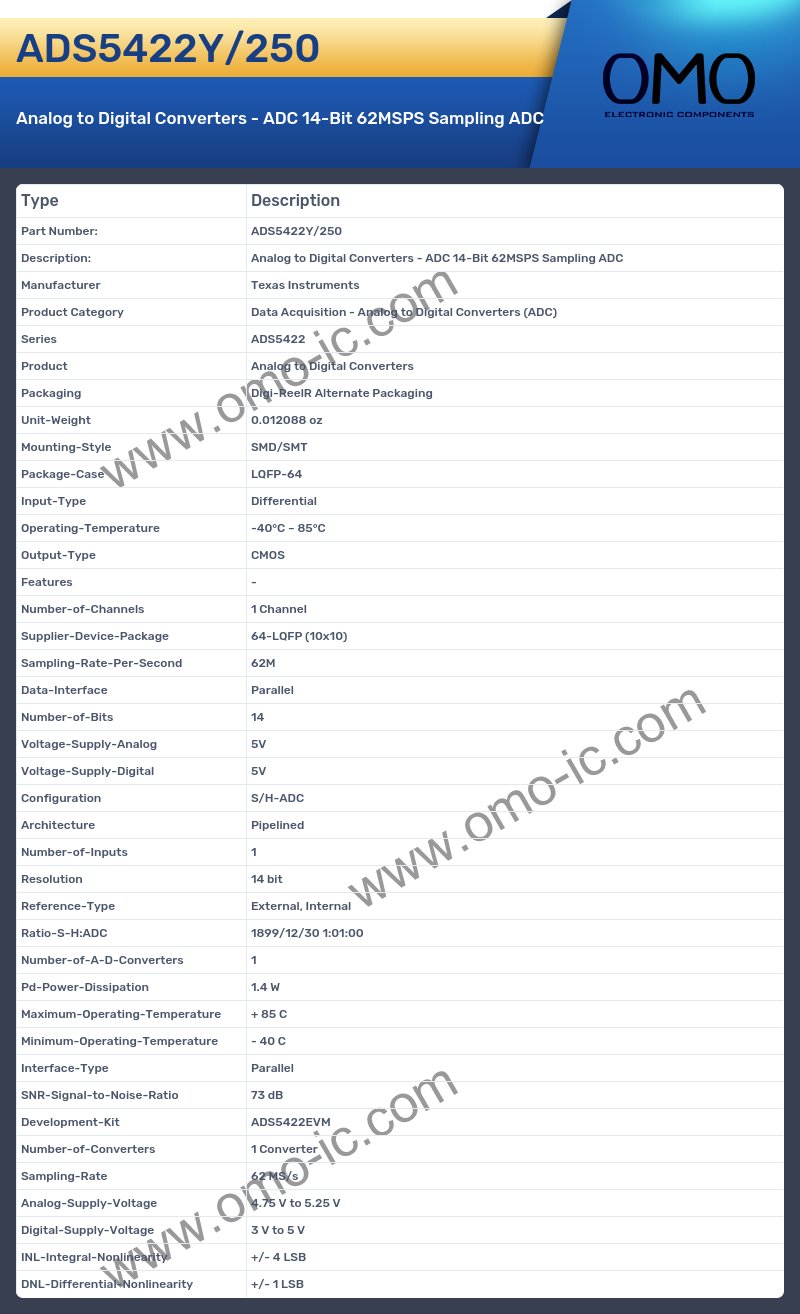

ADS5422Y/250 Image

ADS5422Y/250 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5422
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012088 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type CMOS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-LQFP (10x10)
• Sampling-Rate-Per-Second 62M
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1.4 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 73 dB
• Development-Kit ADS5422EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 62 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5 V
• INL-Integral-Nonlinearity +/- 4 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
