ADS5122CZHK

ADS5122CZHK Overview

Product belongs to the ADS5122 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product Weight of 0.020522 oz SMD/SMT Mounting-Style BGA-Microstar-257 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 257-BGA MICROSTAR (16x16) This product's 65M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 1.65 V ~ 2 V. The Voltage Supply Digital for this product is 1.65 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Power-off control: 800 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 59 dB Number-of-Converters: 8 Converter 65 MS/s Sampling Rate Analog supply voltage: 1.8 V Digital Supply Voltage: 1.8 V Integral Nonlinearity: +/- 2.5 LSB Differential nonlinearity: - 0.9 /1 LSB

ADS5122CZHK Image

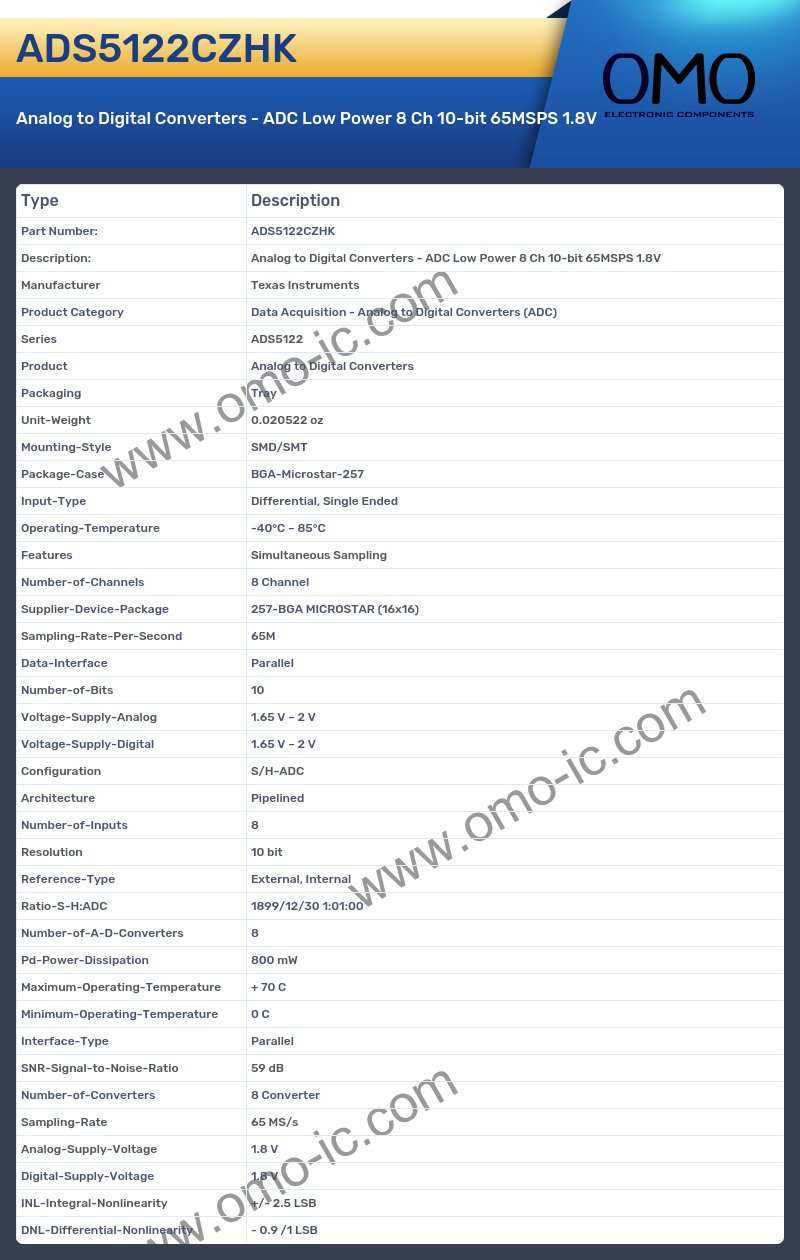

ADS5122CZHK Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5122
• Product Analog to Digital Converters
• Packaging Tray
• Unit-Weight 0.020522 oz
• Mounting-Style SMD/SMT
• Package-Case BGA-Microstar-257
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 257-BGA MICROSTAR (16x16)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 1.65 V ~ 2 V
• Voltage-Supply-Digital 1.65 V ~ 2 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 8
• Pd-Power-Dissipation 800 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 59 dB
• Number-of-Converters 8 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 1.8 V
• Digital-Supply-Voltage 1.8 V
• INL-Integral-Nonlinearity +/- 2.5 LSB
• DNL-Differential-Nonlinearity - 0.9 /1 LSB
