| Mfr. #: | ADS5121IZHK |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Analog to Digital Converters - ADC Low Power 8 Ch 10-bit 40MSPS 1.8V |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | ADS5121IZHK Scheda dati |
Product belongs to the ADS5121 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product Weight of 0.020522 oz SMD/SMT Mounting-Style BGA-Microstar-257 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 257-BGA MICROSTAR (16x16) This product's 40M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 1.65 V ~ 2 V. The Voltage Supply Digital for this product is 1.65 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Power-off control: 525 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 500 mW. Parallel interface type Signal-to-Noise Ratio of 60 dB Number-of-Converters: 8 Converter 40 MS/s Sampling Rate Analog supply voltage: 1.6 V to 2 V Digital Supply Voltage: 1.65 V to 3.6 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: - 0.9 /1 LSB ENOB is 9.5 bit SFDR: 74 dB Signal-to-Noise-and-Distortion-Ratio: 59 dB Full power bandwidth of 22 MHz
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

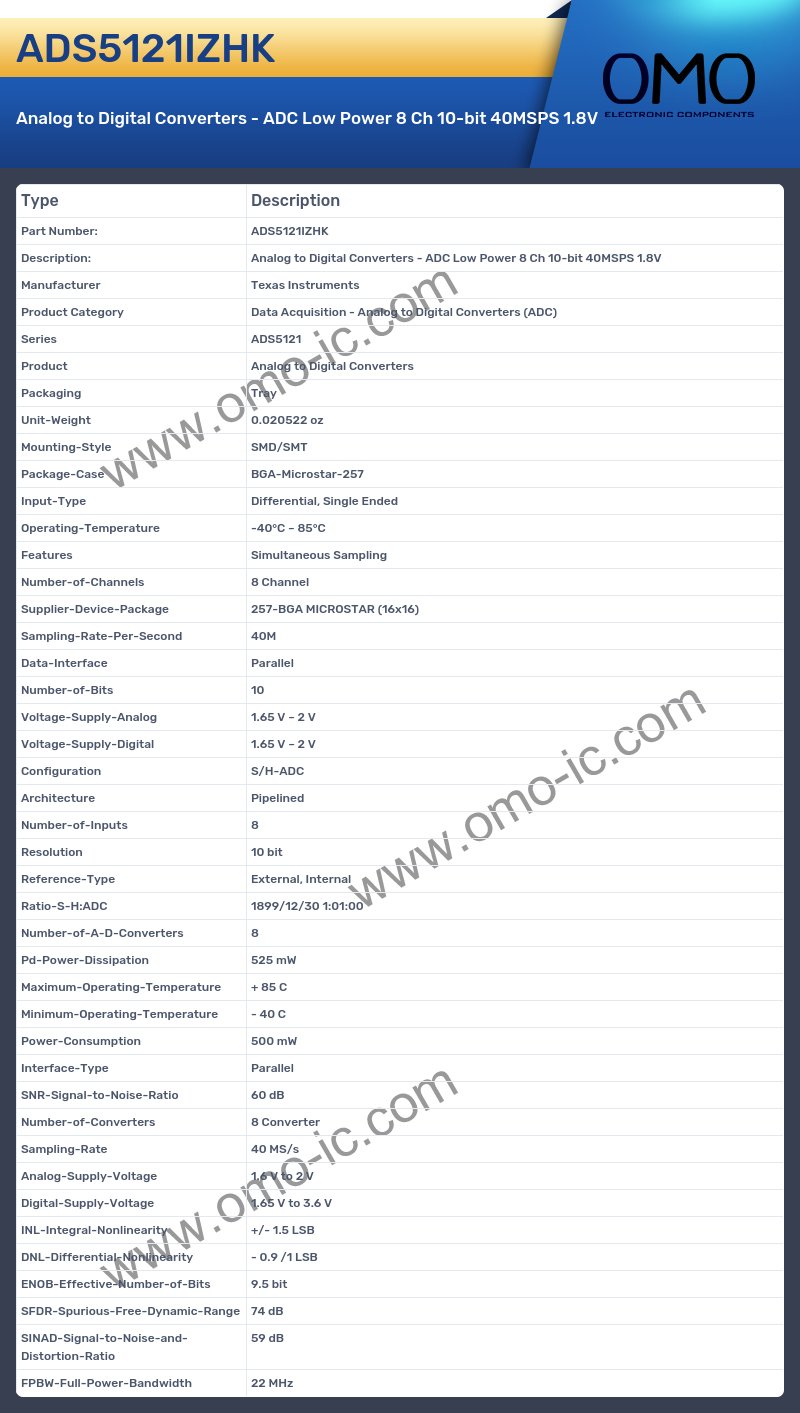

ADS5121IZHK Specifications
A: At what frequency does the Series?
Q: The product Series is ADS5121.
A: What is the Product of the product?
Q: The Product of the product is Analog to Digital Converters.
A: At what frequency does the Packaging?
Q: The product Packaging is Tray.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.020522 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed BGA-Microstar-257
A: At what frequency does the Input-Type?
Q: The product Input-Type is Differential, Single Ended.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 8 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 257-BGA MICROSTAR (16x16)
A: At what frequency does the Sampling-Rate-Per-Second?
Q: The product Sampling-Rate-Per-Second is 40M.
A: Is the cutoff frequency of the product Data-Interface?
Q: Yes, the product's Data-Interface is indeed Parallel
A: What is the Number-of-Bits of the product?
Q: The Number-of-Bits of the product is 10.
A: At what frequency does the Voltage-Supply-Analog?
Q: The product Voltage-Supply-Analog is 1.65 V ~ 2 V.
A: Is the cutoff frequency of the product Voltage-Supply-Digital?
Q: Yes, the product's Voltage-Supply-Digital is indeed 1.65 V ~ 2 V
A: At what frequency does the Configuration?
Q: The product Configuration is S/H-ADC.
A: Is the cutoff frequency of the product Architecture?
Q: Yes, the product's Architecture is indeed Pipelined
A: Is the cutoff frequency of the product Reference-Type?
Q: Yes, the product's Reference-Type is indeed External, Internal
A: What is the Number-of-A-D-Converters of the product?
Q: The Number-of-A-D-Converters of the product is 8.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 525 mW
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: Is the cutoff frequency of the product Power-Consumption?
Q: Yes, the product's Power-Consumption is indeed 500 mW
A: At what frequency does the Interface-Type?
Q: The product Interface-Type is Parallel.
A: At what frequency does the SNR-Signal-to-Noise-Ratio?
Q: The product SNR-Signal-to-Noise-Ratio is 60 dB.
A: What is the Number-of-Converters of the product?
Q: The Number-of-Converters of the product is 8 Converter.
A: What is the Sampling-Rate of the product?
Q: The Sampling-Rate of the product is 40 MS/s.
A: At what frequency does the Analog-Supply-Voltage?
Q: The product Analog-Supply-Voltage is 1.6 V to 2 V.
A: At what frequency does the Digital-Supply-Voltage?
Q: The product Digital-Supply-Voltage is 1.65 V to 3.6 V.
A: At what frequency does the INL-Integral-Nonlinearity?
Q: The product INL-Integral-Nonlinearity is +/- 1.5 LSB.
A: What is the DNL-Differential-Nonlinearity of the product?
Q: The DNL-Differential-Nonlinearity of the product is - 0.9 /1 LSB.
A: Is the cutoff frequency of the product ENOB-Effective-Number-of-Bits?
Q: Yes, the product's ENOB-Effective-Number-of-Bits is indeed 9.5 bit
A: What is the SFDR-Spurious-Free-Dynamic-Range of the product?
Q: The SFDR-Spurious-Free-Dynamic-Range of the product is 74 dB.
A: Is the cutoff frequency of the product SINAD-Signal-to-Noise-and-Distortion-Ratio?
Q: Yes, the product's SINAD-Signal-to-Noise-and-Distortion-Ratio is indeed 59 dB
A: Is the cutoff frequency of the product FPBW-Full-Power-Bandwidth?
Q: Yes, the product's FPBW-Full-Power-Bandwidth is indeed 22 MHz
