ADS42B49IRGCT

ADS42B49IRGCT Overview

Product belongs to the ADS42B49 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008021 oz SMD/SMT Mounting-Style VQFN-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: CMOS LVDS Number of channels: 2 Channel Supplier device package: 64-VQFN (9x9) This product's 250M. Data-Interface: LVDS - Parallel, Parallel 14 bits The Voltage-Supply-Analog is 1.8 V ~ 2 V. The Voltage Supply Digital for this product is 1.7 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 2 units Power-off control: 10 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 71.3 dB The ADS42B49EVM. Number-of-Converters: 2 Converter 250 MS/s Sampling Rate Analog supply voltage: 1.9 V Digital Supply Voltage: 1.8 V to 2 V

ADS42B49IRGCT Image

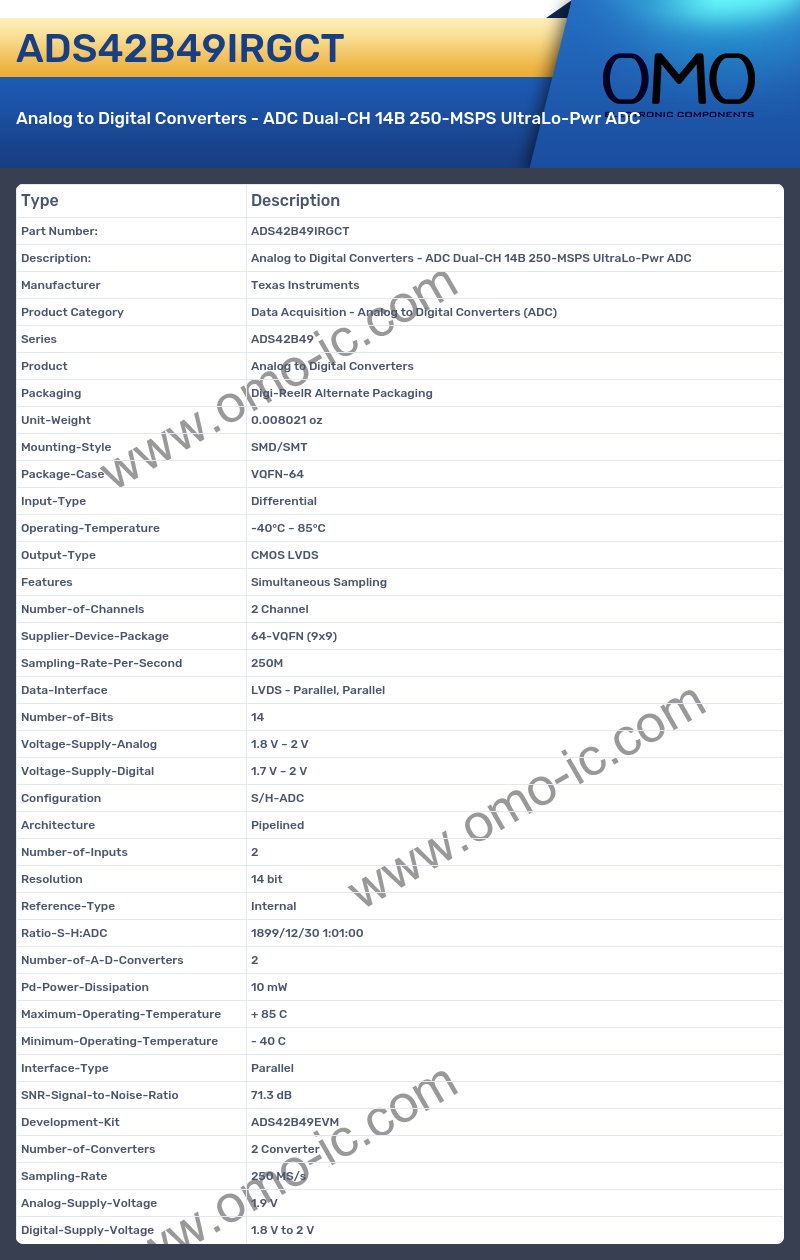

ADS42B49IRGCT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS42B49
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008021 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type CMOS LVDS
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Sampling-Rate-Per-Second 250M
• Data-Interface LVDS - Parallel, Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 1.8 V ~ 2 V
• Voltage-Supply-Digital 1.7 V ~ 2 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 2
• Resolution 14 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 10 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71.3 dB
• Development-Kit ADS42B49EVM
• Number-of-Converters 2 Converter
• Sampling-Rate 250 MS/s
• Analog-Supply-Voltage 1.9 V
• Digital-Supply-Voltage 1.8 V to 2 V
