ADS1282IPWR

ADS1282IPWR Overview

Product belongs to the ADS1282 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 28-TSSOP This product's 4k. Data-Interface: SPI 31 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.65 V ~ 3.6 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 35 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 124 dB Number-of-Converters: 1 Converter 4 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 1.65 V to 3.6 V Integral Nonlinearity: 0.0004 %FSR Differential nonlinearity: +/- 1 LSB

ADS1282IPWR Image

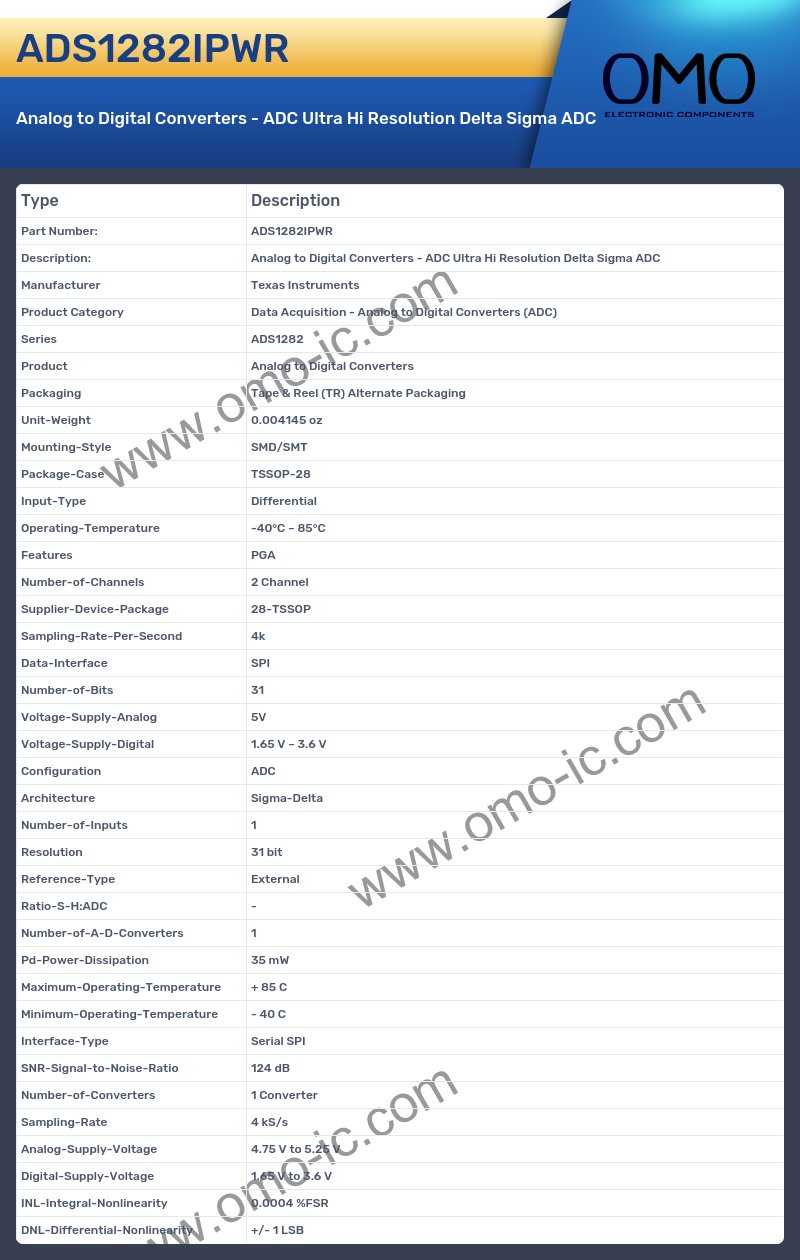

ADS1282IPWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1282
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 4k
• Data-Interface SPI
• Number-of-Bits 31
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.65 V ~ 3.6 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 31 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 35 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 124 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 4 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 1.65 V to 3.6 V
• INL-Integral-Nonlinearity 0.0004 %FSR
• DNL-Differential-Nonlinearity +/- 1 LSB
