ADS1282IPW

ADS1282IPW Overview

Product belongs to the ADS1282 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 28-TSSOP This product's 4k. Data-Interface: SPI 31 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.65 V ~ 3.6 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 25 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 130 dB Number-of-Converters: 1 Converter 4 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 1.65 V to 3.6 V Integral Nonlinearity: 0.0004 %FSR Reference voltage is 5 V . Differential nonlinearity: +/- 1 LSB

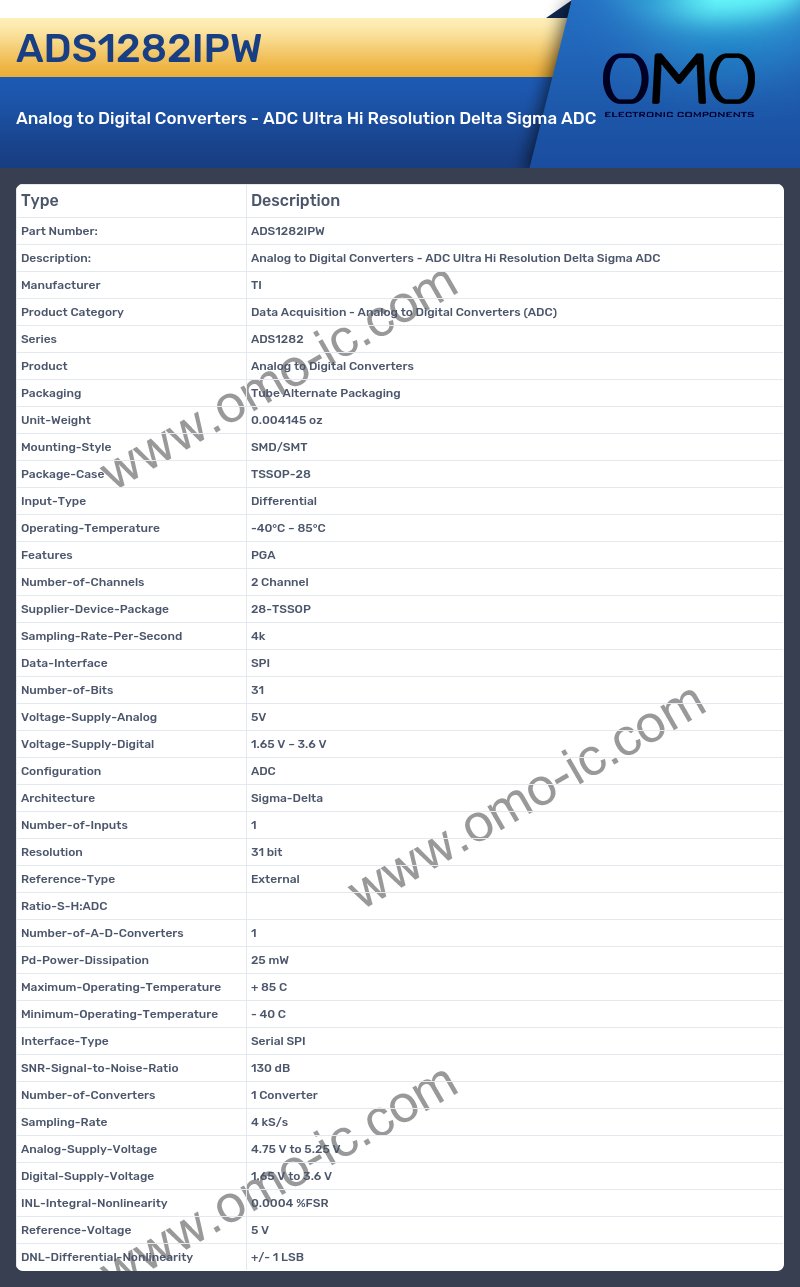

ADS1282IPW Image

ADS1282IPW Specifications

• Manufacturer TI
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1282
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 4k
• Data-Interface SPI
• Number-of-Bits 31
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.65 V ~ 3.6 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 31 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 25 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 130 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 4 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 1.65 V to 3.6 V
• INL-Integral-Nonlinearity 0.0004 %FSR
• Reference-Voltage 5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
