ADS1241E

ADS1241E Overview

Product belongs to the ADS1241 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.008529 oz SMD/SMT Mounting-Style SSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 28-SSOP This product's 15. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 1.9 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire 4-Wire SPI interface type The ADS1241MEVM. Number-of-Converters: 1 Converter 15 S/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 0.0015 %FSR Reference voltage is 0.1 V to 5 V . Differential nonlinearity: +/- 1 LSB

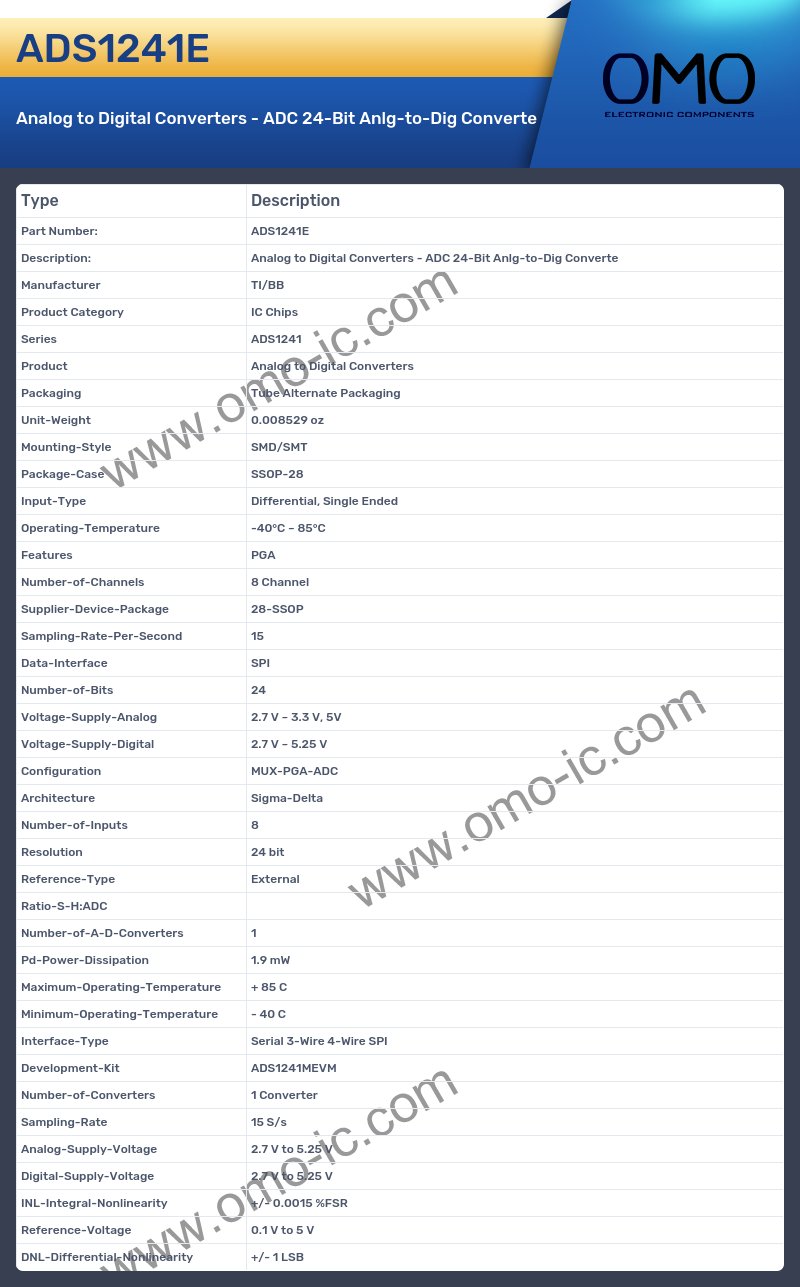

ADS1241E Image

ADS1241E Specifications

• Manufacturer TI/BB
• Product Category IC Chips
• Series ADS1241
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008529 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 8 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 15
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 8
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1.9 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire 4-Wire SPI
• Development-Kit ADS1241MEVM
• Number-of-Converters 1 Converter
• Sampling-Rate 15 S/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
• Reference-Voltage 0.1 V to 5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
