ADS1224IPWT

ADS1224IPWT Overview

Product belongs to the ADS1224 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002758 oz SMD/SMT Mounting-Style TSSOP-20 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 20-TSSOP This product's 240. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 2.25 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire SPI interface type The ADS1224EVM. Number-of-Converters: 1 Converter 240 S/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: 0.0015 %FSR Reference voltage is 2.5 V . Differential nonlinearity: +/- 1 LSB

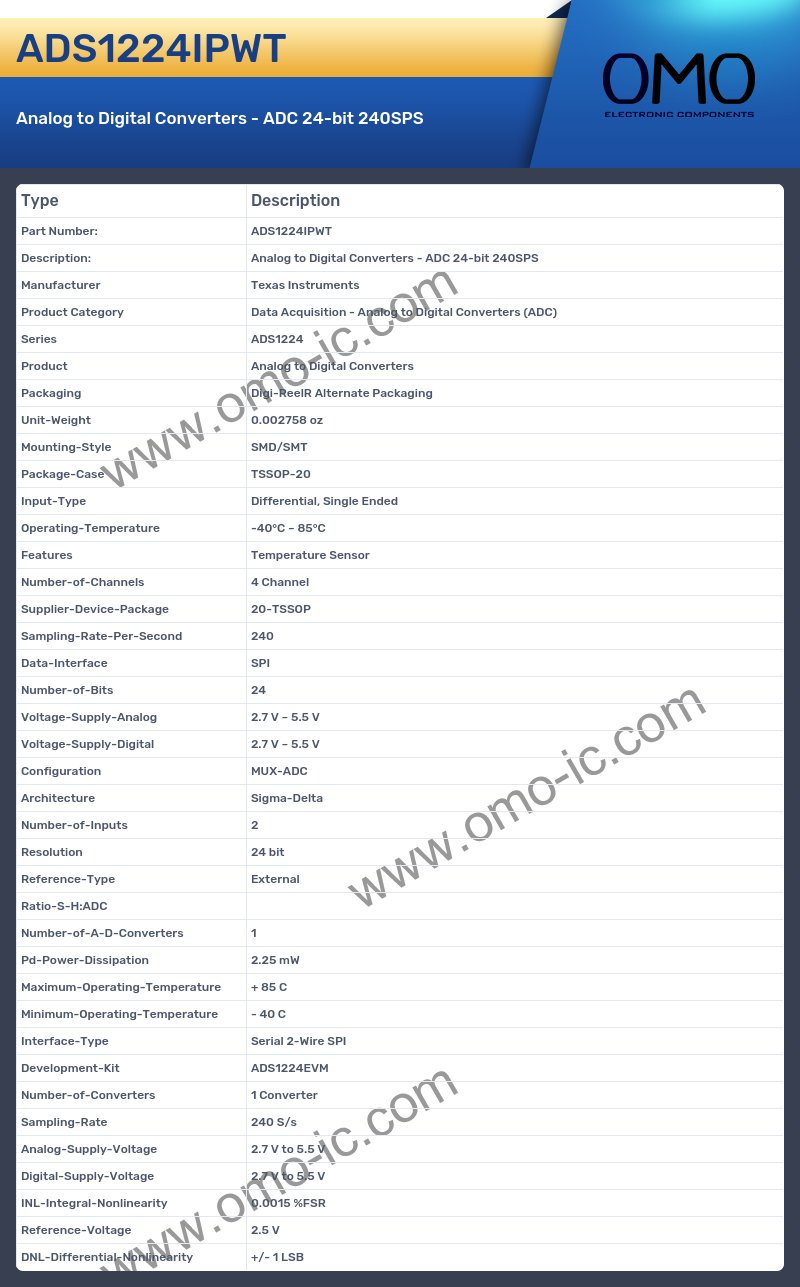

ADS1224IPWT Image

ADS1224IPWT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1224
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002758 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Temperature Sensor
• Number-of-Channels 4 Channel
• Supplier-Device-Package 20-TSSOP
• Sampling-Rate-Per-Second 240
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 2
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.25 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire SPI
• Development-Kit ADS1224EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 240 S/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity 0.0015 %FSR
• Reference-Voltage 2.5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
