ADS1220IRVAR

ADS1220IRVAR Overview

Product belongs to the ADS1220 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.001623 oz SMD/SMT Mounting-Style VQFN-16 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 16-VQFN (3.5x3.5) This product's 2k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.3 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.3 V ~ 5.5 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External, Internal, Supply is the reference type. 1 units Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type The ADS1220EVM. 2 kS/s Sampling Rate Analog supply voltage: 2.3 V to 5.5 V Digital Supply Voltage: 2.3 V to 5.5 V Integral Nonlinearity: 0.0015 %

ADS1220IRVAR Image

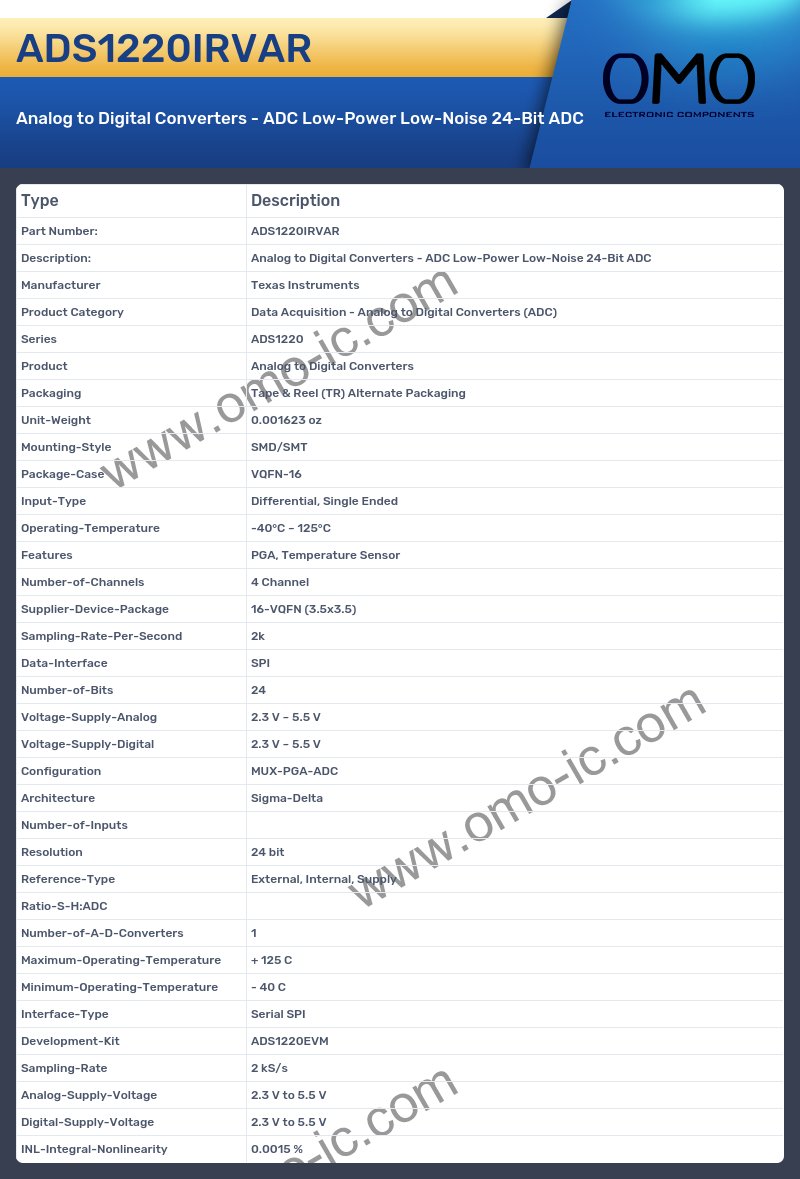

ADS1220IRVAR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1220
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.001623 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-16
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features PGA, Temperature Sensor
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-VQFN (3.5x3.5)
• Sampling-Rate-Per-Second 2k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.3 V ~ 5.5 V
• Voltage-Supply-Digital 2.3 V ~ 5.5 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 24 bit
• Reference-Type External, Internal, Supply
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Development-Kit ADS1220EVM
• Sampling-Rate 2 kS/s
• Analog-Supply-Voltage 2.3 V to 5.5 V
• Digital-Supply-Voltage 2.3 V to 5.5 V
• INL-Integral-Nonlinearity 0.0015 %
