ADS1212U/1K

ADS1212U/1K Overview

Product belongs to the ADS1212 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOP-18 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 18-SOIC This product's 6.25k. Data-Interface: SPI 22 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration PGA-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 8.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire 3-Wire 4-Wire SPI interface type Number-of-Converters: 1 Converter 6.25 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 0.0015 %FSR Differential nonlinearity: +/- 1 LSB

ADS1212U/1K Image

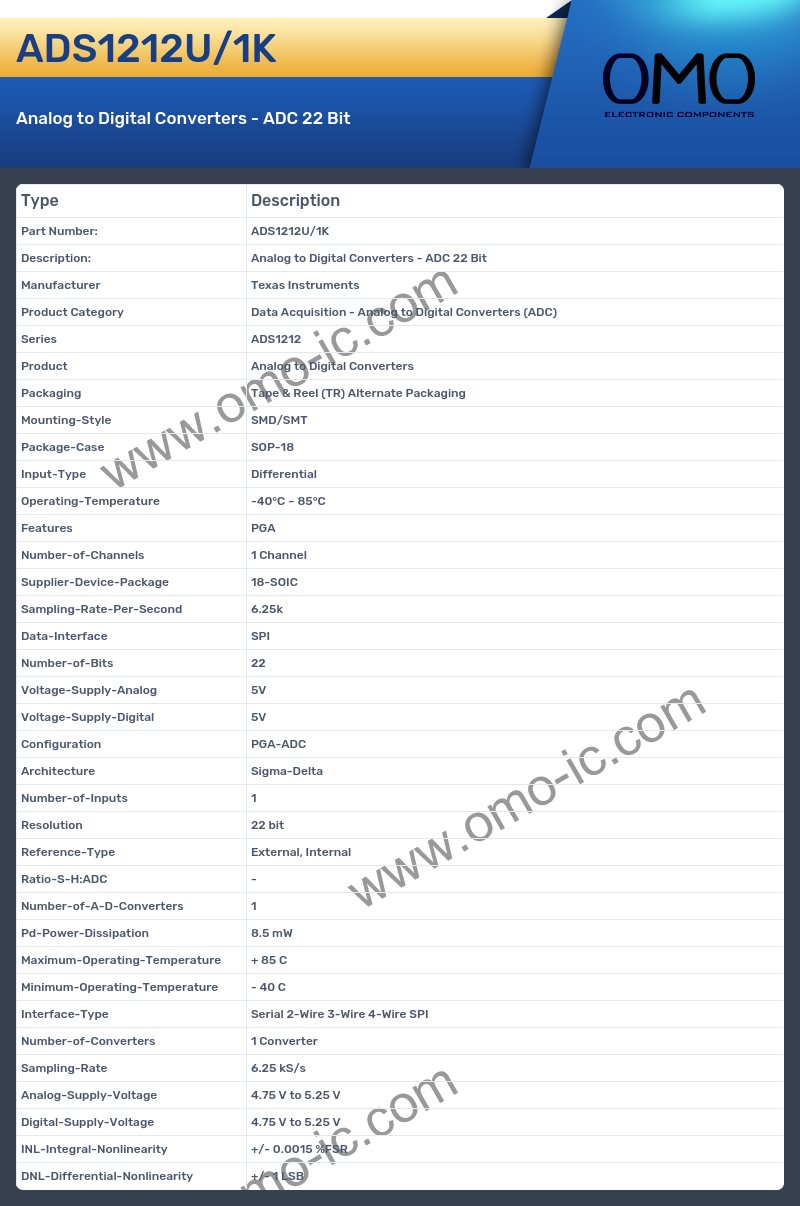

ADS1212U/1K Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1212
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOP-18
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 1 Channel
• Supplier-Device-Package 18-SOIC
• Sampling-Rate-Per-Second 6.25k
• Data-Interface SPI
• Number-of-Bits 22
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 22 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 8.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire 3-Wire 4-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 6.25 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
• DNL-Differential-Nonlinearity +/- 1 LSB
