ADS1158IRTCR

ADS1158IRTCR Overview

Product belongs to the ADS1158 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.003175 oz SMD/SMT Mounting-Style VQFNP-48 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 8 Channel/16 Channel Supplier device package: 48-VQFN Exposed Pad (7x7) This product's 125k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 62 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 125 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 2.5 V to 3.6 V Integral Nonlinearity: 1 LSB Differential nonlinearity: +/- 1 LSB

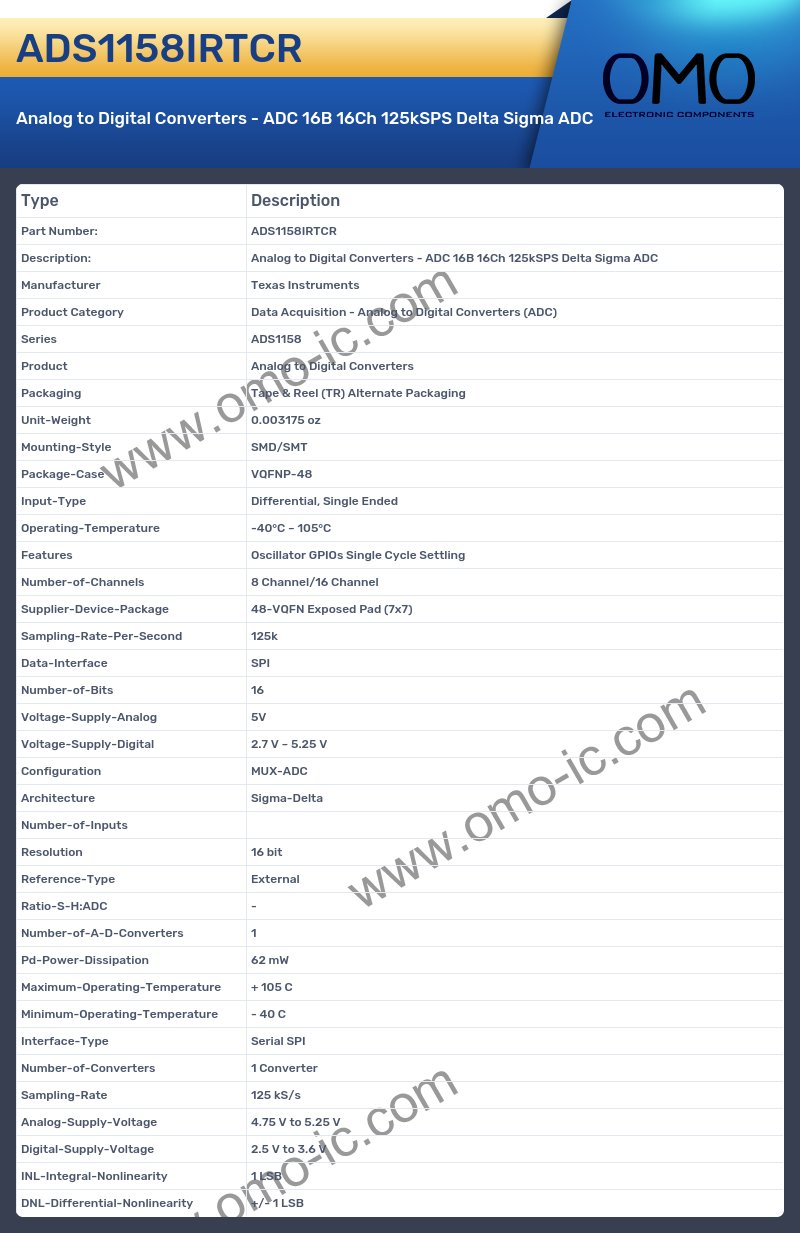

ADS1158IRTCR Image

ADS1158IRTCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1158
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.003175 oz
• Mounting-Style SMD/SMT
• Package-Case VQFNP-48
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 105°C
• Features Oscillator GPIOs Single Cycle Settling
• Number-of-Channels 8 Channel/16 Channel
• Supplier-Device-Package 48-VQFN Exposed Pad (7x7)
• Sampling-Rate-Per-Second 125k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 62 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 125 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 2.5 V to 3.6 V
• INL-Integral-Nonlinearity 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
