ADS1118IDGST

ADS1118IDGST Overview

Product belongs to the ADS1118 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000836 oz SMD/SMT Mounting-Style VSSOP-10 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 10-VSSOP This product's 860. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 2 V ~ 5.5 V. The Voltage Supply Digital for this product is 2 V ~ 5.5 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . Internal is the reference type. 1 units Power-off control: 0.9 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 860 S/s Sampling Rate Analog supply voltage: 2 V to 5.5 V Digital Supply Voltage: 2 V to 5.5 V Integral Nonlinearity: 0.0015 %

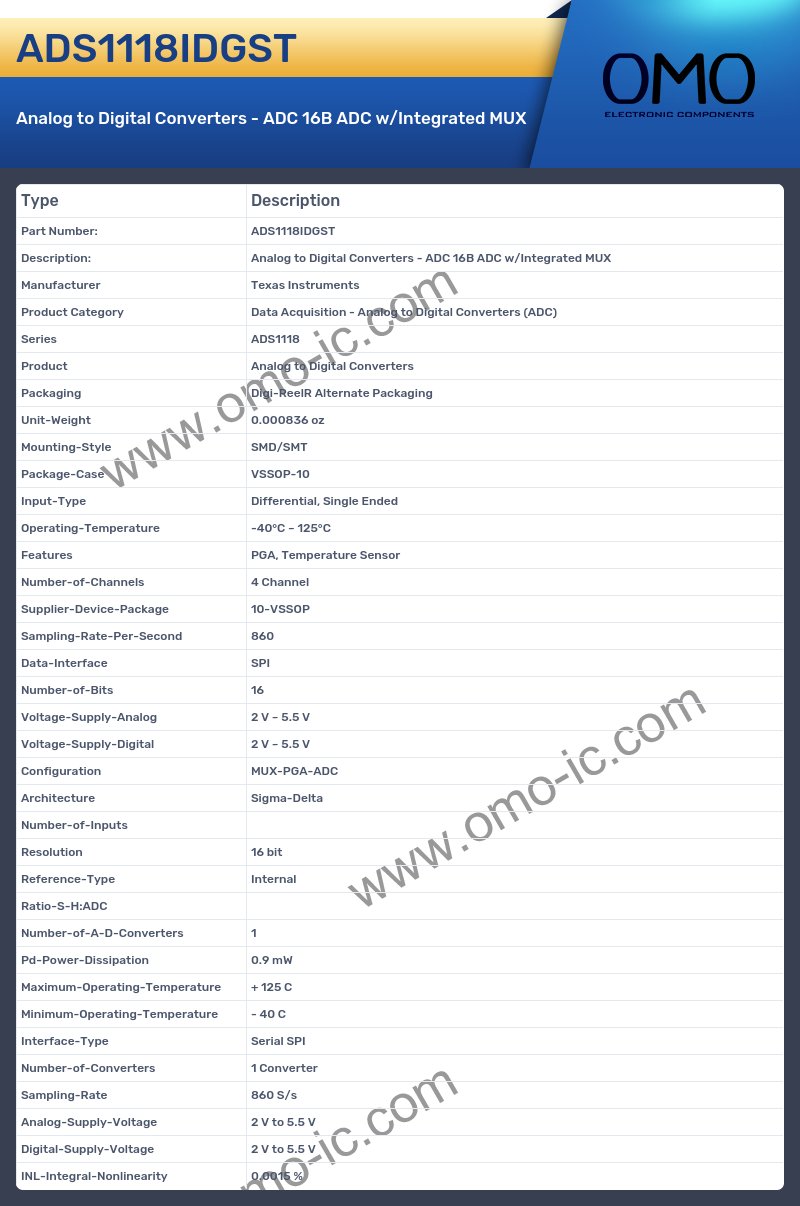

ADS1118IDGST Image

ADS1118IDGST Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1118
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000836 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-10
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features PGA, Temperature Sensor
• Number-of-Channels 4 Channel
• Supplier-Device-Package 10-VSSOP
• Sampling-Rate-Per-Second 860
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 2 V ~ 5.5 V
• Voltage-Supply-Digital 2 V ~ 5.5 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 16 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 0.9 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 860 S/s
• Analog-Supply-Voltage 2 V to 5.5 V
• Digital-Supply-Voltage 2 V to 5.5 V
• INL-Integral-Nonlinearity 0.0015 %
