ADS1013IRUGR

ADS1013IRUGR Overview

Product belongs to the ADS1013 series. This product is categorized as Analog to Digital Converters Type: Precision ADC Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000208 oz SMD/SMT Mounting-Style X2QFN-10 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Channel/1 Channel Supplier device package: 10-X2QFN (2x1.5) This product's 3.3k. Data-Interface: I2C 12 bits The Voltage-Supply-Analog is 2 V ~ 5.5 V. The Voltage Supply Digital for this product is 2 V ~ 5.5 V. Configuration ADC The architecture of this product is Sigma-Delta . Internal is the reference type. 1 units Power-off control: 900 uW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial 2-Wire I2C interface type The 0.25 % FSR of this product is 0.2%. Number-of-Converters: 1 Converter 3.3 kS/s Sampling Rate Analog supply voltage: 2 V to 5.5 V Digital Supply Voltage: 2 V to 5.5 V Integral Nonlinearity: 0.5 LSB

ADS1013IRUGR Image

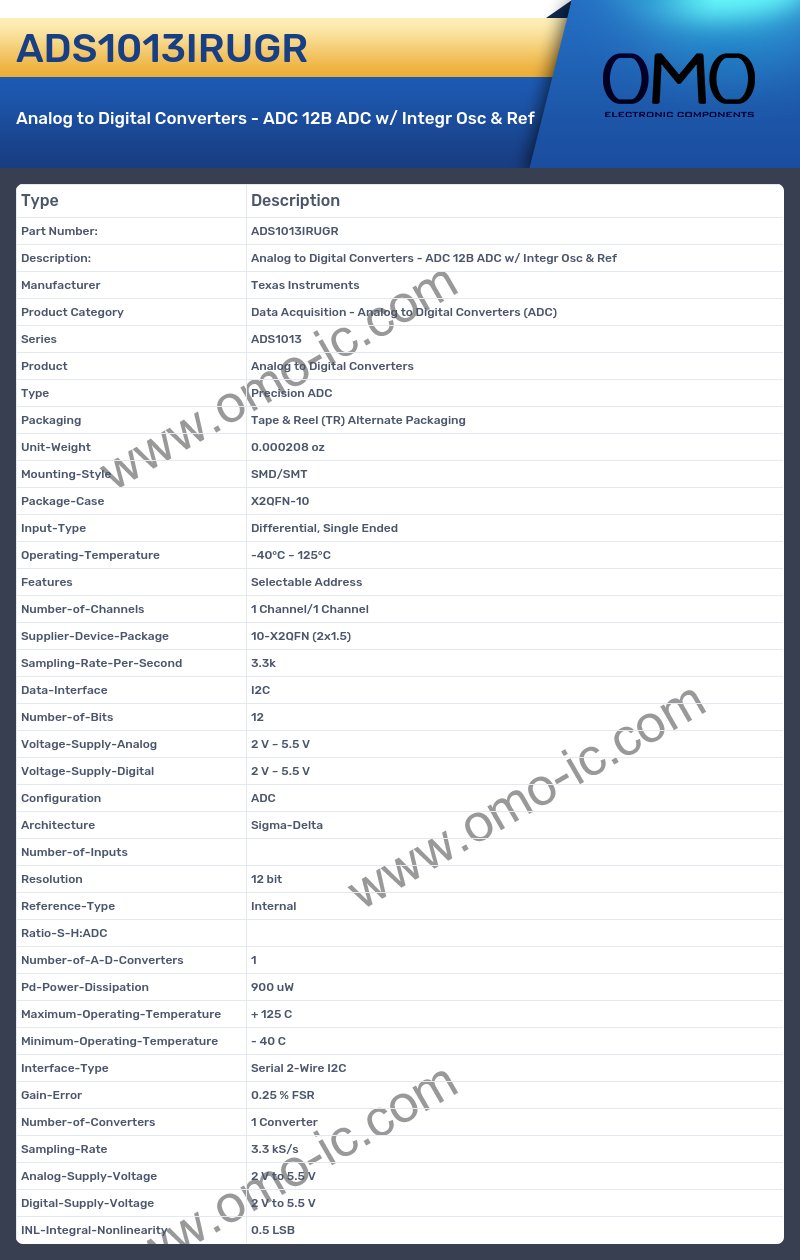

ADS1013IRUGR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1013
• Product Analog to Digital Converters
• Type Precision ADC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000208 oz
• Mounting-Style SMD/SMT
• Package-Case X2QFN-10
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features Selectable Address
• Number-of-Channels 1 Channel/1 Channel
• Supplier-Device-Package 10-X2QFN (2x1.5)
• Sampling-Rate-Per-Second 3.3k
• Data-Interface I2C
• Number-of-Bits 12
• Voltage-Supply-Analog 2 V ~ 5.5 V
• Voltage-Supply-Digital 2 V ~ 5.5 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 900 uW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire I2C
• Gain-Error 0.25 % FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 3.3 kS/s
• Analog-Supply-Voltage 2 V to 5.5 V
• Digital-Supply-Voltage 2 V to 5.5 V
• INL-Integral-Nonlinearity 0.5 LSB
