ADRF6701ACPZ-R7

ADRF6701ACPZ-R7 Overview

Product belongs to the ADRF6701 series. Type: Modulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-40 Product function is Modulator. Voltage Supply Range: 4.75 V ~ 5.25 V This product has a 290mA of 200μA. Test-Frequency is 1.1GHz. P1dB is 10.3dB Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.75 V to 5.25 V supply voltage for reliable performance. The 1250 MHz of this product is 25 GHz. 240 mA is 92 nA. SPI interface type The ADRF6701-EVALZ. The 400 MHz of this product is 0 Hz. Quadrature are the supported modulation formats.

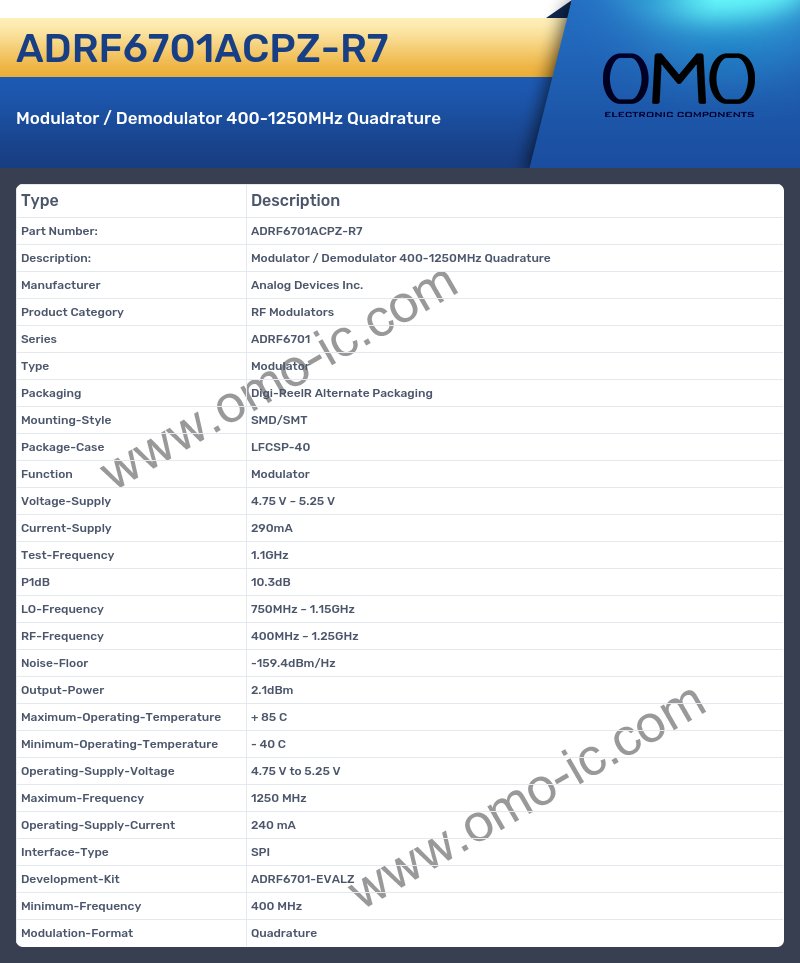

ADRF6701ACPZ-R7 Image

ADRF6701ACPZ-R7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Modulators
• Series ADRF6701
• Type Modulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-40
• Function Modulator
• Voltage-Supply 4.75 V ~ 5.25 V
• Current-Supply 290mA
• Test-Frequency 1.1GHz
• P1dB 10.3dB
• LO-Frequency 750MHz ~ 1.15GHz
• RF-Frequency 400MHz ~ 1.25GHz
• Noise-Floor -159.4dBm/Hz
• Output-Power 2.1dBm
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.75 V to 5.25 V
• Maximum-Frequency 1250 MHz
• Operating-Supply-Current 240 mA
• Interface-Type SPI
• Development-Kit ADRF6701-EVALZ
• Minimum-Frequency 400 MHz
• Modulation-Format Quadrature
