ADM708ANZ Overview

Product belongs to the ADM708 series. Type: Simple Reset/Power-On Reset Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Active High Active Low Supplier device package: 8-PDIP The Push-Pull, Push-Pull. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 160 ms Minimum. This product's 4.4V. Power-off control: 727 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 250 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.75 V This product includes No Watchdog This product's 4.4 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 4.5 V is 2.35 V. 4.25 V is set to 2.29 V.

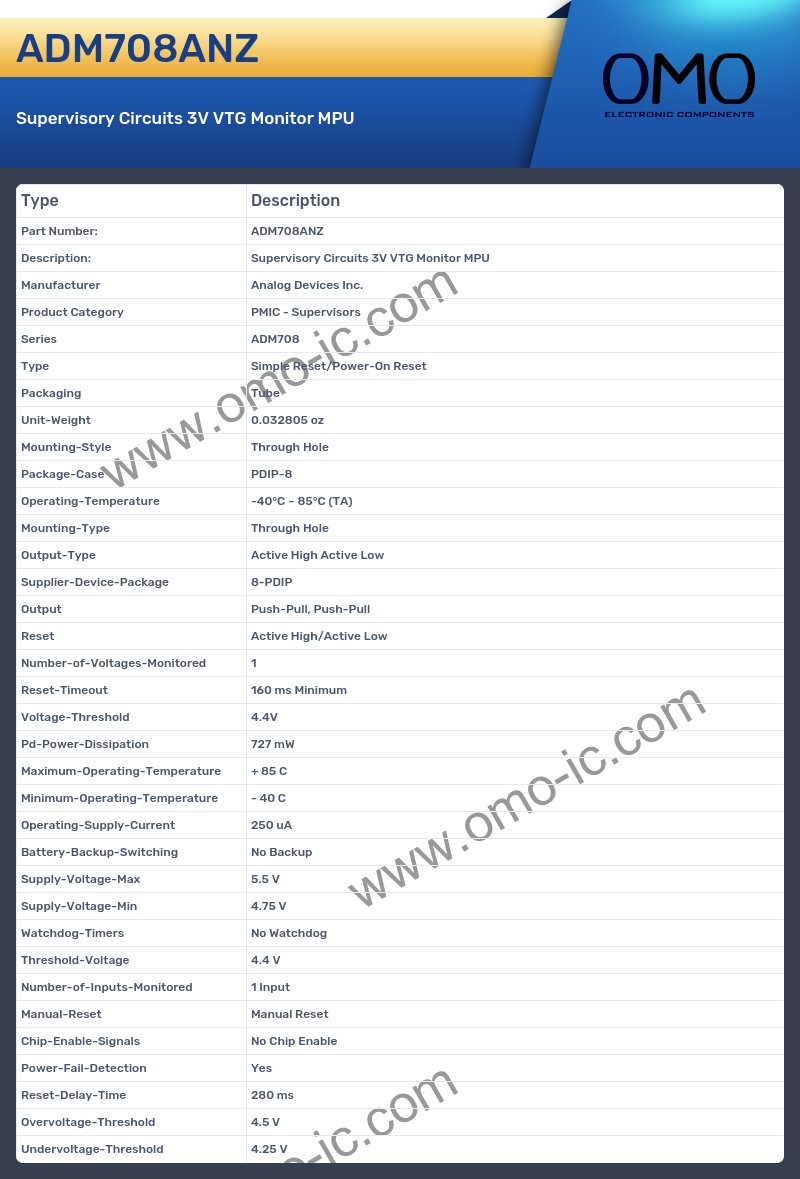

ADM708ANZ Image

ADM708ANZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Supervisors
• Series ADM708
• Type Simple Reset/Power-On Reset
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Active High Active Low
• Supplier-Device-Package 8-PDIP
• Output Push-Pull, Push-Pull
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 160 ms Minimum
• Voltage-Threshold 4.4V
• Pd-Power-Dissipation 727 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 250 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.75 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 4.4 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 4.5 V
• Undervoltage-Threshold 4.25 V
