ADM707AR

ADM707AR Overview

Product belongs to the ADM707 series. Type: Simple Reset/Power-On Reset Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-SOIC The Push-Pull, Push-Pull. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 160 ms Minimum. This product's 4.65V. Power-off control: 470 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 250 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.75 V This product includes No Watchdog This product's 4.65 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 4.75 V is 2.35 V. 4.5 V is set to 2.29 V.

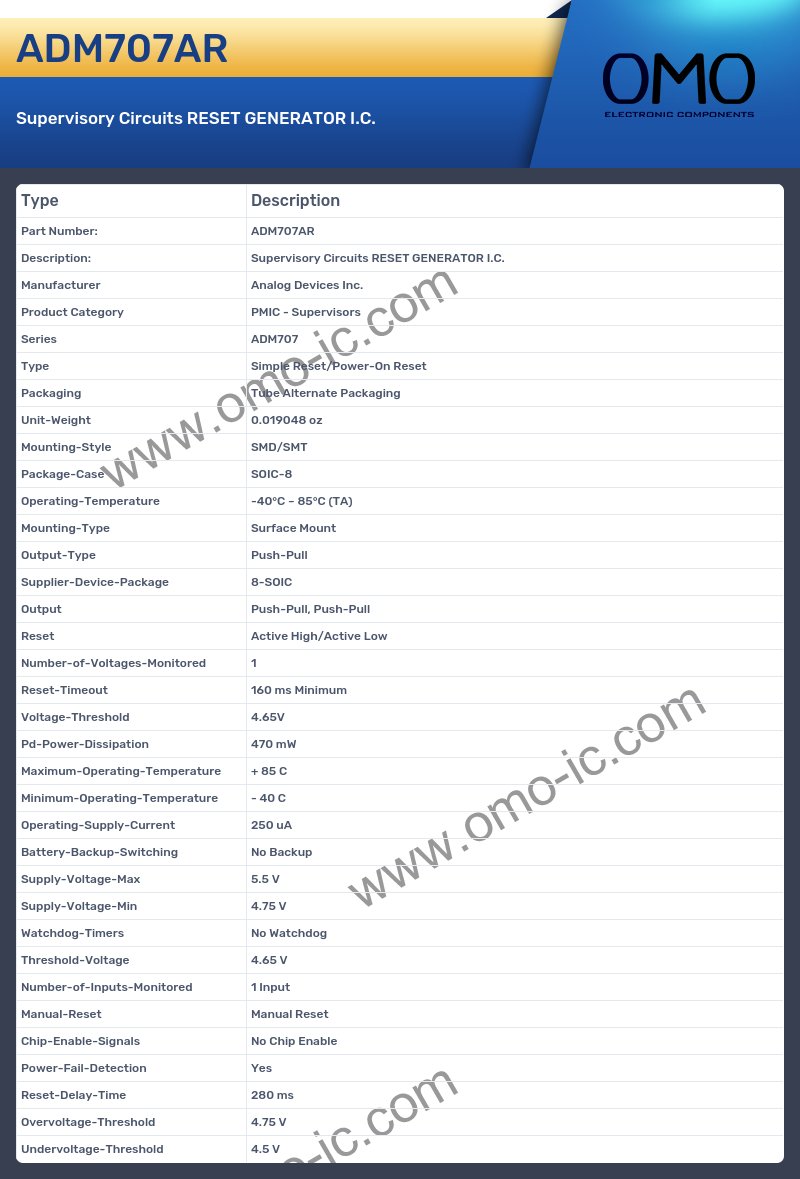

ADM707AR Image

ADM707AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Supervisors
• Series ADM707
• Type Simple Reset/Power-On Reset
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Push-Pull
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 160 ms Minimum
• Voltage-Threshold 4.65V
• Pd-Power-Dissipation 470 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 250 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.75 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 4.65 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 4.75 V
• Undervoltage-Threshold 4.5 V
