ADM693ANZ

ADM693ANZ Overview

Product belongs to the ADM693 series. Type: Battery Backup Circuit Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Open Drain Push-Pull Supplier device package: 16-PDIP The Open Drain, Push-Pull. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 35 ms Minimum. This product's 4.4V. Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1.95 mA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V This product includes Watchdog This product's 4.4 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support Chip Enable. This product does not have Yes capability. The product's 70 ms is 200 ms. The 4.48 V is 2.35 V. 4.25 V is set to 2.29 V.

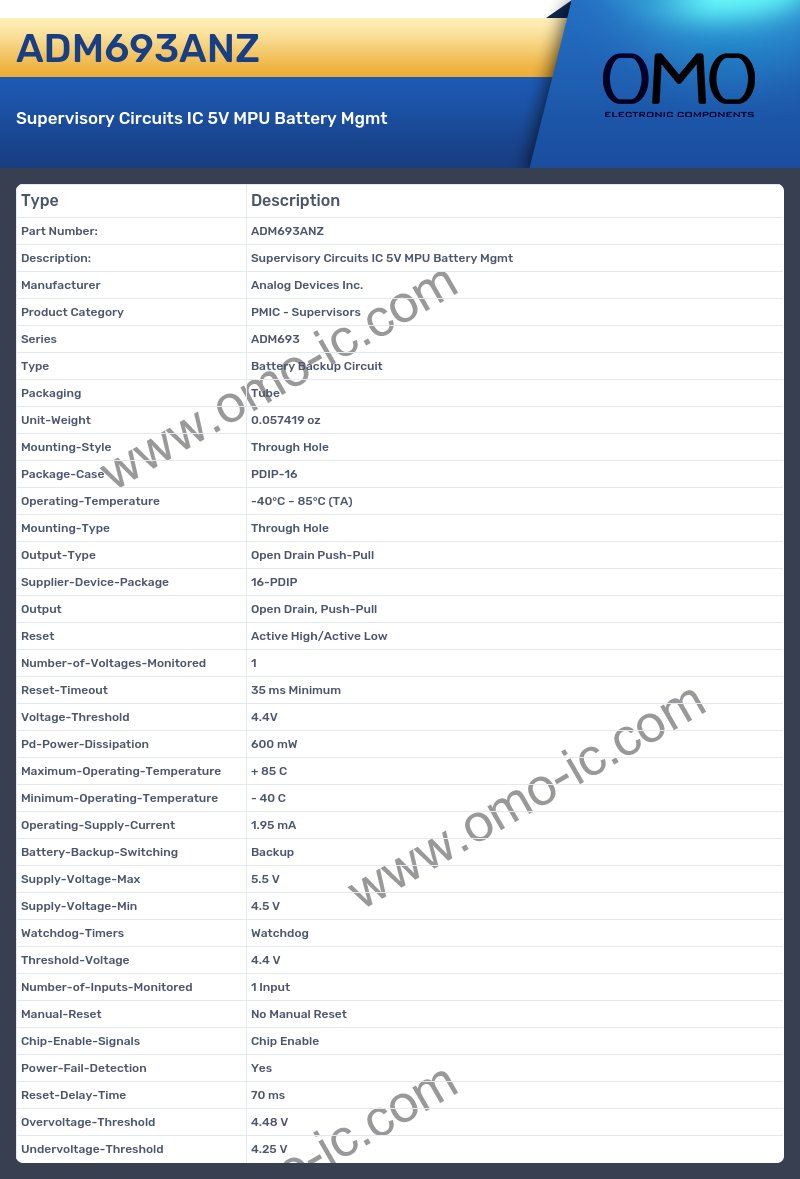

ADM693ANZ Image

ADM693ANZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Supervisors
• Series ADM693
• Type Battery Backup Circuit
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Open Drain Push-Pull
• Supplier-Device-Package 16-PDIP
• Output Open Drain, Push-Pull
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 35 ms Minimum
• Voltage-Threshold 4.4V
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.95 mA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 4.4 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 70 ms
• Overvoltage-Threshold 4.48 V
• Undervoltage-Threshold 4.25 V
