ADM660ARZ-REEL

ADM660ARZ-REEL Overview

Product belongs to the ADM660 series. Type: Charge Pumps Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 25kHz, 120kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin . The value of No is included as a product attribute. The minimum input voltage is 1.5V. The 7V. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 1.5 V to - 7 V 5 V to 14 V 4.5 mA is 92 nA. Input Voltage Range: 1.5 V to 7 V Output current: 100 mA Switching frequency is 120 kHz

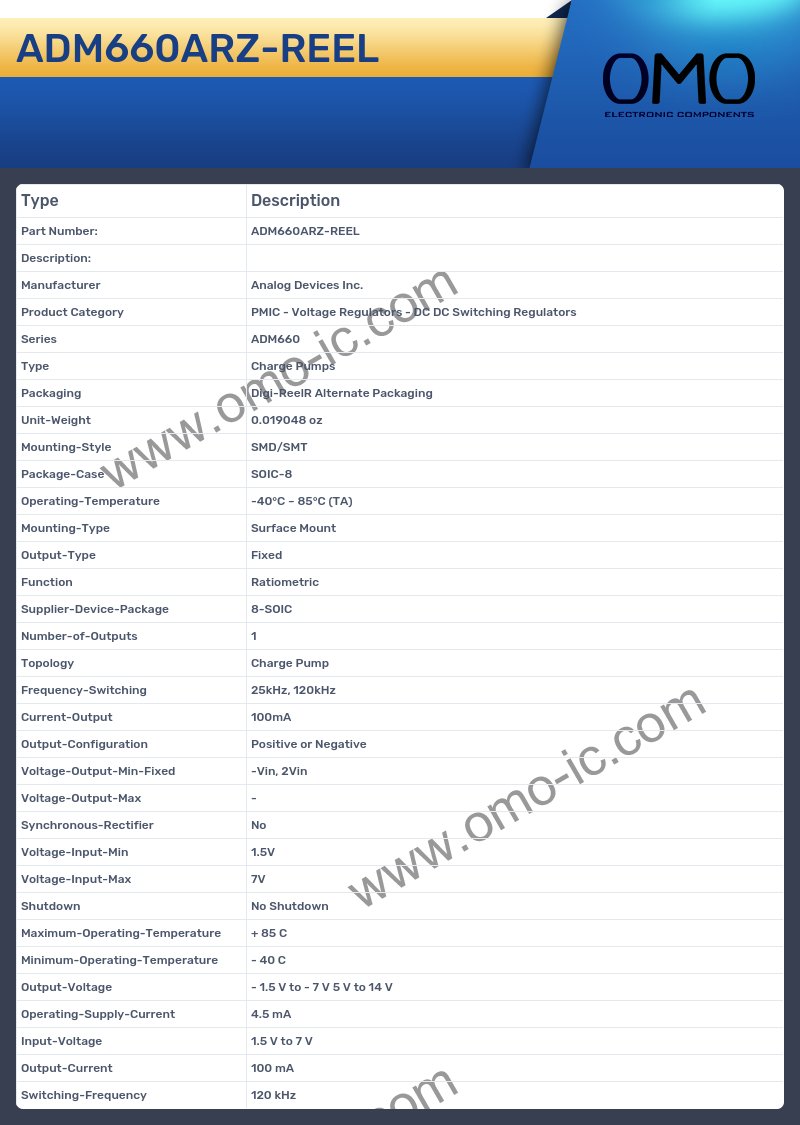

ADM660ARZ-REEL Image

ADM660ARZ-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series ADM660
• Type Charge Pumps
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 25kHz, 120kHz
• Current-Output 100mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.5V
• Voltage-Input-Max 7V
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 1.5 V to - 7 V 5 V to 14 V
• Operating-Supply-Current 4.5 mA
• Input-Voltage 1.5 V to 7 V
• Output-Current 100 mA
• Switching-Frequency 120 kHz
