ADL5566-EVALZ

ADL5566-EVALZ Overview

Product belongs to the ADL5566 series. This product is categorized as Evaluation Boards Type: RF Amplifiers Bulk is the packaging method for this product This product's 4.5 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Output-Type: Differential Voltage supply range: 2.8 V ~ 5.2 V The 4.5GHz The 20000 V/μs. Current-Output-Channel is - The amplifier is of Differential type. Included item: Board. IC package type: ADL5566 Board type: Fully Populated. The product has 2 - Dual channel per IC. This product operates at a 3 V to 5 V supply voltage for reliable performance. This tool is designed for the ADL5566. SMA Connector interface type

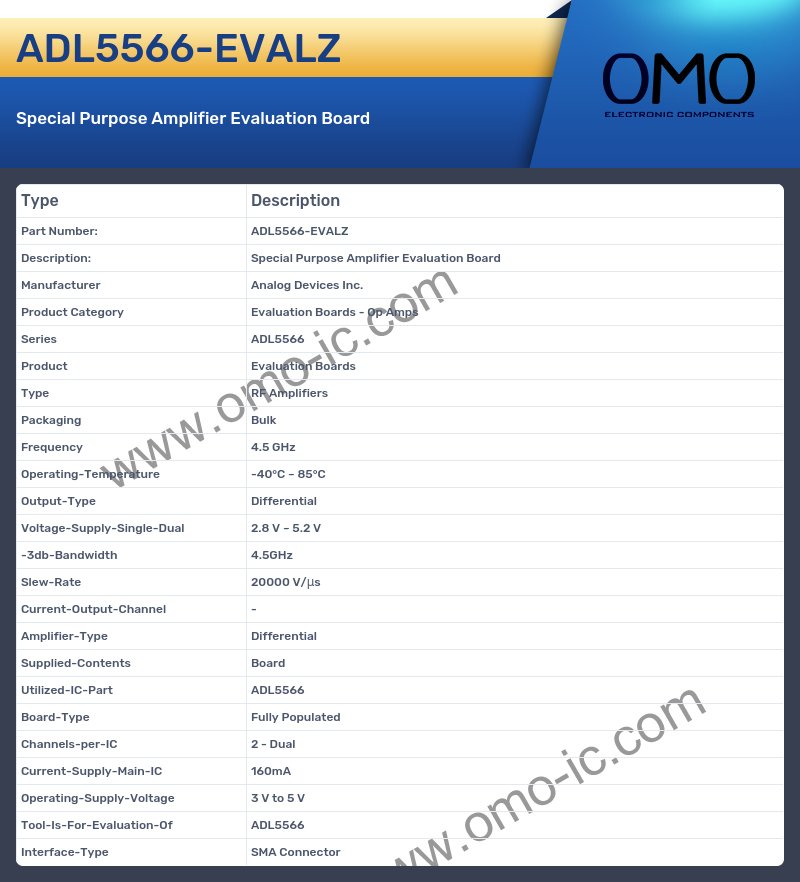

ADL5566-EVALZ Image

ADL5566-EVALZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Evaluation Boards - Op Amps
• Series ADL5566
• Product Evaluation Boards
• Type RF Amplifiers
• Packaging Bulk
• Frequency 4.5 GHz
• Operating-Temperature -40°C ~ 85°C
• Output-Type Differential
• Voltage-Supply-Single-Dual 2.8 V ~ 5.2 V
• -3db-Bandwidth 4.5GHz
• Slew-Rate 20000 V/μs
• Current-Output-Channel -
• Amplifier-Type Differential
• Supplied-Contents Board
• Utilized-IC-Part ADL5566
• Board-Type Fully Populated
• Channels-per-IC 2 - Dual
• Current-Supply-Main-IC 160mA
• Operating-Supply-Voltage 3 V to 5 V
• Tool-Is-For-Evaluation-Of ADL5566
• Interface-Type SMA Connector
