ADG751ARTZ-REEL7

ADG751ARTZ-REEL7 Overview

Product belongs to the ADG751 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Switch. Supplier device package: SOT-23-6 - is 8. Voltage supply source: Analog and digital Single Supply Configuration 1 x SPST Circuit type: 1 x SPST - NC 18 Ohm maximum on-state resistance Voltage supply range: 1.8 V ~ 5.5 V This product has a 1nA of 200μA. The - Power-off control: 500 nW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. Maximum supply current: 100 nA Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V Single Supply supply type Max on-resistance of 18 Ohms Maximum off time: 5 ns 1 Switch switch functionality Maximum on-time: 13 ns The maximum switch voltage for this product is 5 V The 30 mA

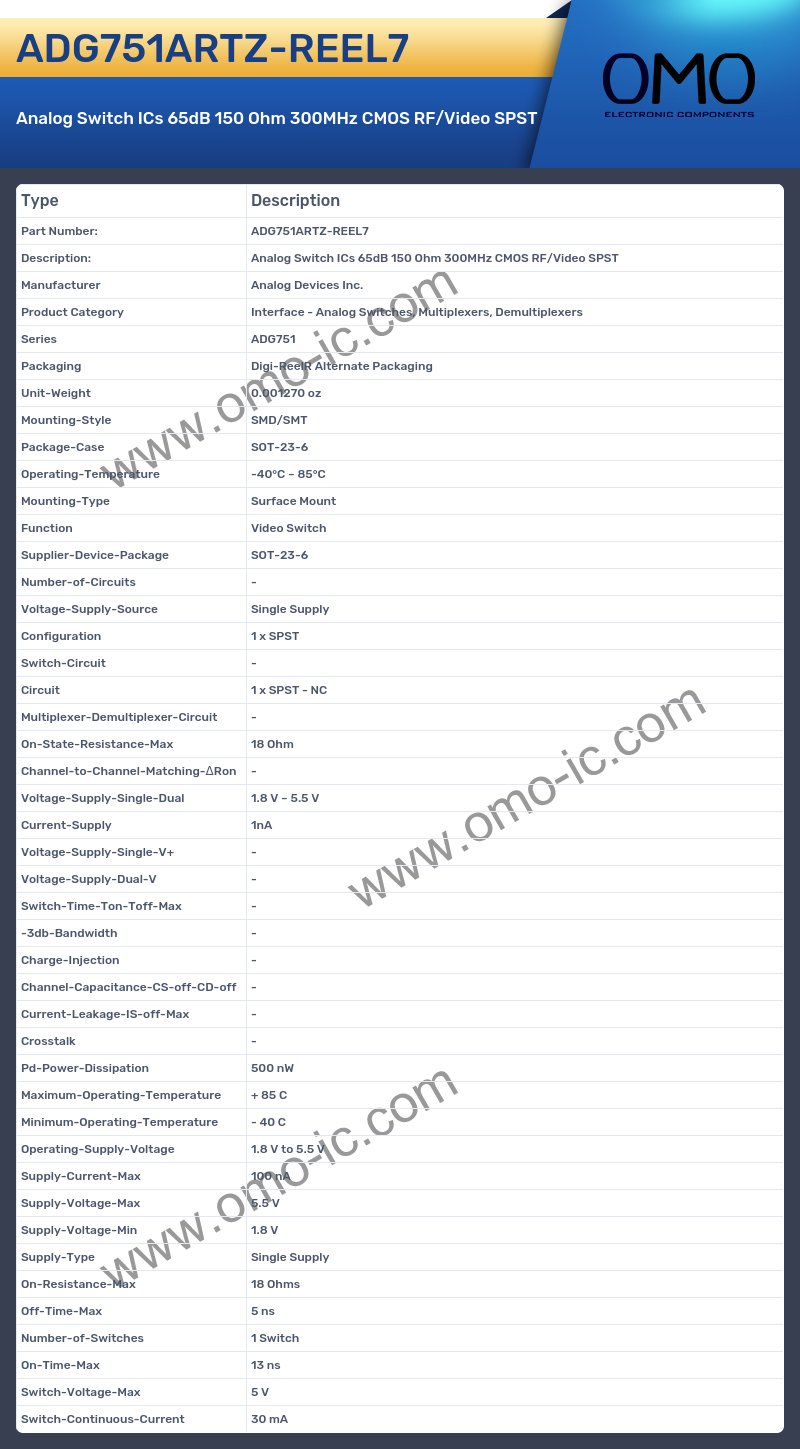

ADG751ARTZ-REEL7 Image

ADG751ARTZ-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG751
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Switch
• Supplier-Device-Package SOT-23-6
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 1 x SPST
• Switch-Circuit -
• Circuit 1 x SPST - NC
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 18 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 1.8 V ~ 5.5 V
• Current-Supply 1nA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Pd-Power-Dissipation 500 nW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Supply-Current-Max 100 nA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Supply-Type Single Supply
• On-Resistance-Max 18 Ohms
• Off-Time-Max 5 ns
• Number-of-Switches 1 Switch
• On-Time-Max 13 ns
• Switch-Voltage-Max 5 V
• Switch-Continuous-Current 30 mA
