ADG5423BRMZ

ADG5423BRMZ Overview

Product belongs to the ADG5423 series. Tube is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style Configuration 2 x SPST Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 9 V to 40 V supply voltage for reliable performance. Maximum supply current: 55 uA Maximum supply voltage of 40 V Minimum supply voltage is 9 V MSOP-10 Maximum dual supply voltage: +/- 22 V Minimum dual supply voltage of +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 15 Ohms Maximum off time: 196 ns 2 Switch switch functionality Maximum on-time: 220 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 84 mA

ADG5423BRMZ Image

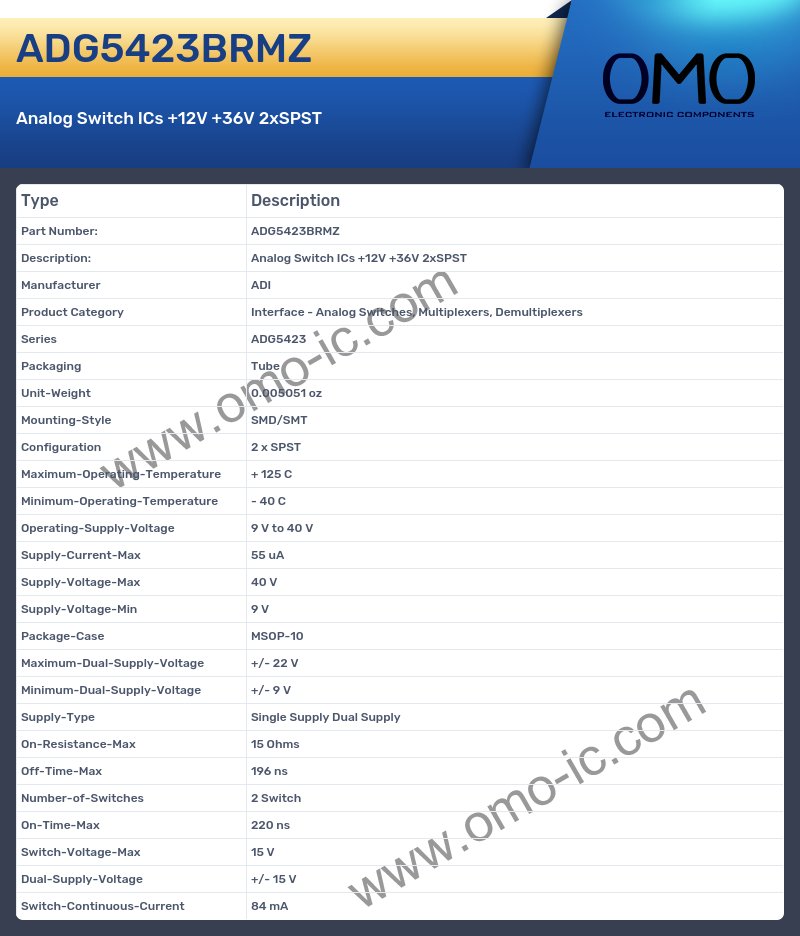

ADG5423BRMZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG5423
• Packaging Tube
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Configuration 2 x SPST
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V to 40 V
• Supply-Current-Max 55 uA
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 9 V
• Package-Case MSOP-10
• Maximum-Dual-Supply-Voltage +/- 22 V
• Minimum-Dual-Supply-Voltage +/- 9 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 15 Ohms
• Off-Time-Max 196 ns
• Number-of-Switches 2 Switch
• On-Time-Max 220 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 15 V
• Switch-Continuous-Current 84 mA
