ADG5421BCPZ-RL7

ADG5421BCPZ-RL7 Overview

Product belongs to the ADG5421 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Configuration 2 x SPST Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 9 V to 40 V supply voltage for reliable performance. Maximum supply current: 70 uA Maximum supply voltage of 40 V Minimum supply voltage is 9 V LFCSP-10 Maximum dual supply voltage: +/- 22 V Minimum dual supply voltage of +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 14 Ohms Maximum off time: 184 ns 2 Switch switch functionality Maximum on-time: 199 ns The maximum switch voltage for this product is 36 V The +/- 20 V. The 132 mA

ADG5421BCPZ-RL7 Image

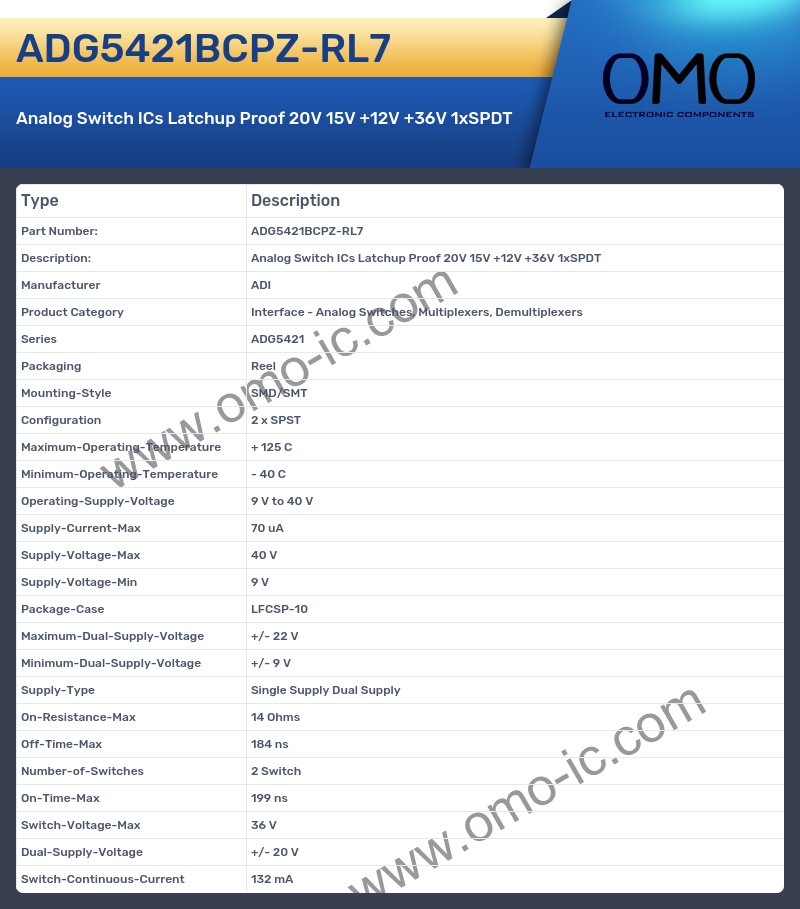

ADG5421BCPZ-RL7 Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG5421
• Packaging Reel
• Mounting-Style SMD/SMT
• Configuration 2 x SPST
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V to 40 V
• Supply-Current-Max 70 uA
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 9 V
• Package-Case LFCSP-10
• Maximum-Dual-Supply-Voltage +/- 22 V
• Minimum-Dual-Supply-Voltage +/- 9 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 14 Ohms
• Off-Time-Max 184 ns
• Number-of-Switches 2 Switch
• On-Time-Max 199 ns
• Switch-Voltage-Max 36 V
• Dual-Supply-Voltage +/- 20 V
• Switch-Continuous-Current 132 mA
