ADG5409BRUZ

ADG5409BRUZ Overview

Product belongs to the ADG5409 series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 88 MHz bandwidth Power-off control: 2.9 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 9 V to 40 V supply voltage for reliable performance. Maximum supply current: 80 pA Maximum supply voltage of 36 V Minimum supply voltage is 20 V TSSOP-16 Max on-resistance of 30 Ohms Maximum off time: 189 ns Maximum on-time: 218 ns The - 60 dB of this product is 35 dB.

ADG5409BRUZ Image

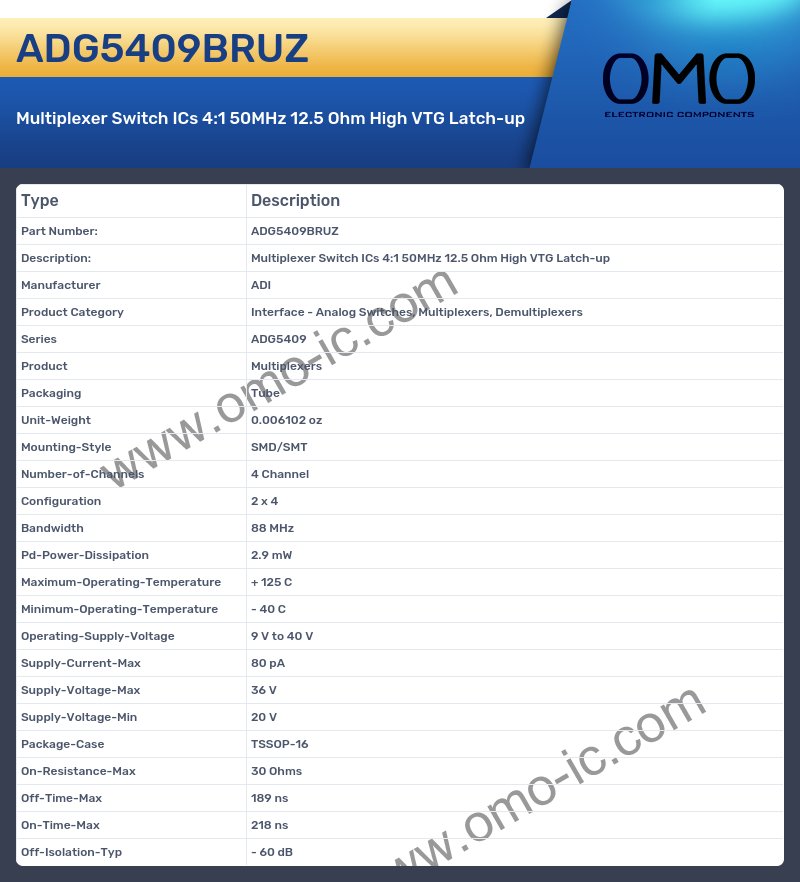

ADG5409BRUZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG5409
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Bandwidth 88 MHz
• Pd-Power-Dissipation 2.9 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V to 40 V
• Supply-Current-Max 80 pA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 20 V
• Package-Case TSSOP-16
• On-Resistance-Max 30 Ohms
• Off-Time-Max 189 ns
• On-Time-Max 218 ns
• Off-Isolation-Typ - 60 dB
