ADG511BNZ

ADG511BNZ Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Demultiplexer Circuit with 1: outputs This product features a 4. Maximum On-State Resistance: 30 Ohm (Typ) " - Channel-to-Channel Matching Dual voltage supply of ±4.5 V ~ 5.5 V The Switch Time is 200ns, 120ns (Typ). This product has a - The channel capacitance is 9pF, 9pF. Operating Temperature of -40°C ~ 85°C (TA) Package type is 16-DIP (0.300", 7.62mm) The supplier device package for this product is 16-PDIP. ADG511 is the base part number.

ADG511BNZ Image

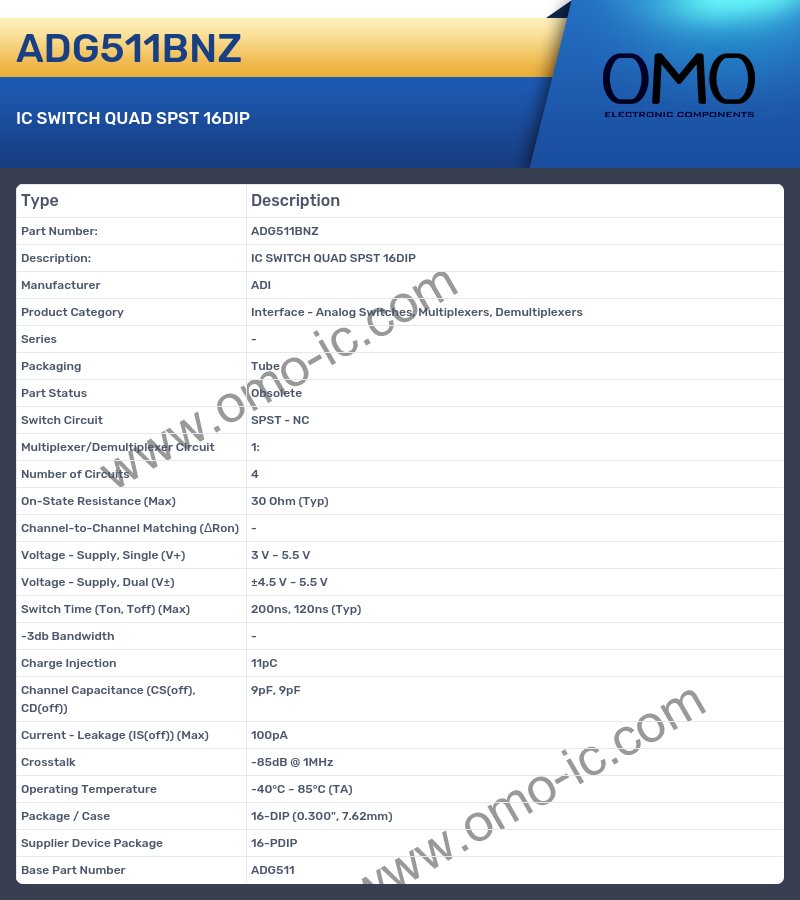

ADG511BNZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Tube
• Part Status Obsolete
• Switch Circuit SPST - NC
• Multiplexer/Demultiplexer Circuit 1:
• Number of Circuits 4
• On-State Resistance (Max) 30 Ohm (Typ)
• Channel-to-Channel Matching (ΔRon) -
• Voltage - Supply, Single (V+) 3 V ~ 5.5 V
• Voltage - Supply, Dual (V±) ±4.5 V ~ 5.5 V
• Switch Time (Ton, Toff) (Max) 200ns, 120ns (Typ)
• -3db Bandwidth -
• Charge Injection 11pC
• Channel Capacitance (CS(off), CD(off)) 9pF, 9pF
• Current - Leakage (IS(off)) (Max) 100pA
• Crosstalk -85dB @ 1MHz
• Operating Temperature -40°C ~ 85°C (TA)
• Package / Case 16-DIP (0.300", 7.62mm)
• Supplier Device Package 16-PDIP
• Base Part Number ADG511
