ADG509FBRN

ADG509FBRN Overview

Product belongs to the ADG509F series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 Power-off control: 3.3 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a +/- 15 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 15 V Minimum supply voltage is - 15 V SOIC-16 Max on-resistance of 390 Ohms Maximum off time: 130 ns Maximum on-time: 230 ns

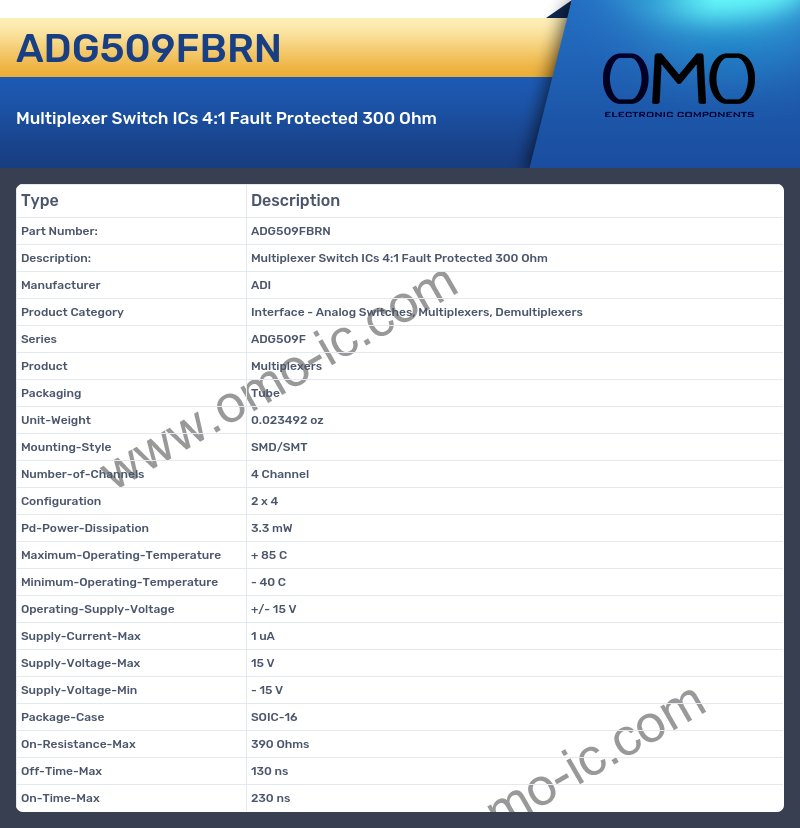

ADG509FBRN Image

ADG509FBRN Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG509F
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Pd-Power-Dissipation 3.3 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage +/- 15 V
• Supply-Current-Max 1 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min - 15 V
• Package-Case SOIC-16
• On-Resistance-Max 390 Ohms
• Off-Time-Max 130 ns
• On-Time-Max 230 ns
