ADG509ATQ/883B

ADG509ATQ/883B Overview

Product belongs to the ADG509A series. This product is categorized as Multiplexers Tube is the packaging method for this product Number of channels: 4 Channel Configuration 2 x 4 Power-off control: 470 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 12 V 15 V supply voltage for reliable performance. Maximum supply voltage of 16.5 V CDIP-16 300 ns is 23 microseconds. Maximum dual supply voltage: +/- 16.5 V Single Supply Dual Supply supply type Max on-resistance of 700 Ohms Maximum off time: 450 ns Maximum on-time: 450 ns

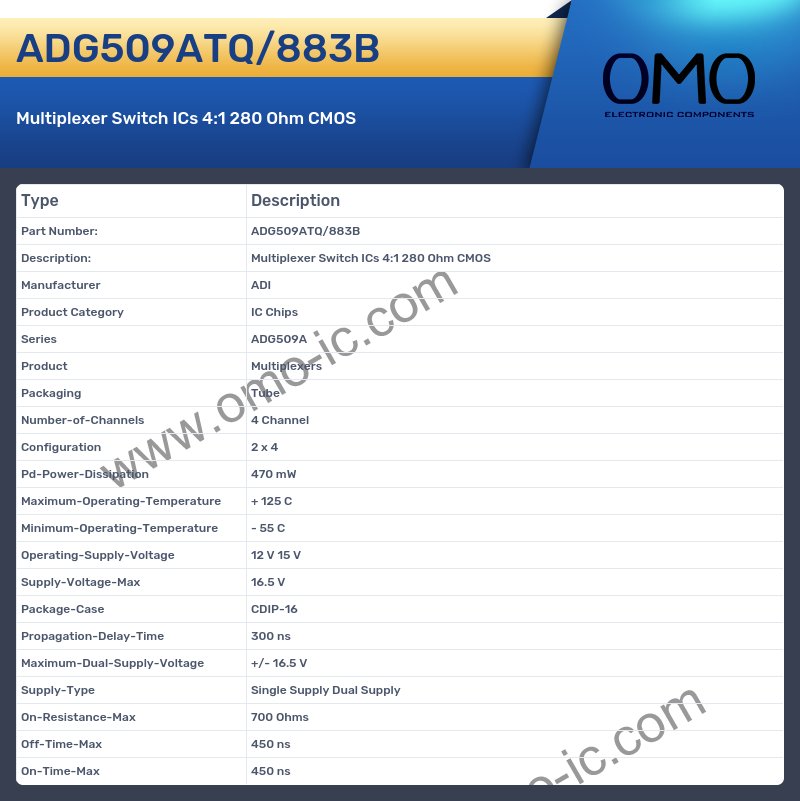

ADG509ATQ/883B Image

ADG509ATQ/883B Specifications

• Manufacturer ADI
• Product Category IC Chips
• Series ADG509A
• Product Multiplexers
• Packaging Tube
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Pd-Power-Dissipation 470 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 12 V 15 V
• Supply-Voltage-Max 16.5 V
• Package-Case CDIP-16
• Propagation-Delay-Time 300 ns
• Maximum-Dual-Supply-Voltage +/- 16.5 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 700 Ohms
• Off-Time-Max 450 ns
• On-Time-Max 450 ns
