ADG507ATE Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Demultiplexer Circuit with 8: outputs This product features a 2. Maximum On-State Resistance: 300 Ohm " 15 Ohm Channel-to-Channel Matching Dual voltage supply of ±10.8 V ~ 16.5 V The Switch Time is 300ns, 300ns. This product has a - The channel capacitance is 5pF, 22pF. Operating Temperature of -55°C ~ 125°C (TA) Package type is 28-CLCC The supplier device package for this product is 28-LCCC (11.43x11.43). ADG507A is the base part number.

ADG507ATE Image

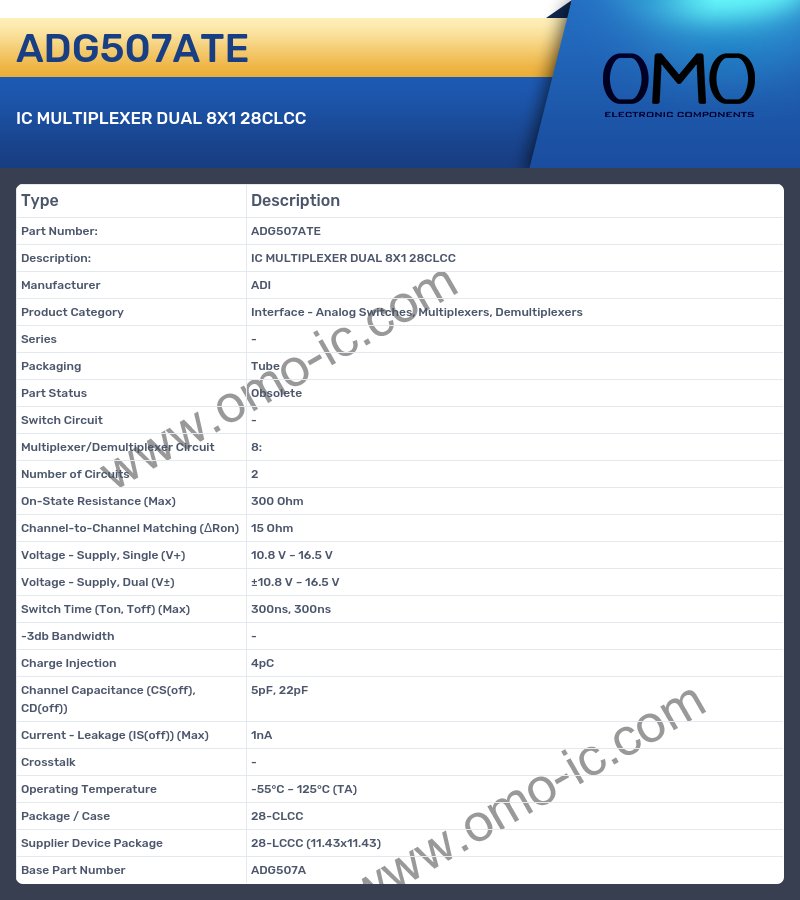

ADG507ATE Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Tube
• Part Status Obsolete
• Switch Circuit -
• Multiplexer/Demultiplexer Circuit 8:
• Number of Circuits 2
• On-State Resistance (Max) 300 Ohm
• Channel-to-Channel Matching (ΔRon) 15 Ohm
• Voltage - Supply, Single (V+) 10.8 V ~ 16.5 V
• Voltage - Supply, Dual (V±) ±10.8 V ~ 16.5 V
• Switch Time (Ton, Toff) (Max) 300ns, 300ns
• -3db Bandwidth -
• Charge Injection 4pC
• Channel Capacitance (CS(off), CD(off)) 5pF, 22pF
• Current - Leakage (IS(off)) (Max) 1nA
• Crosstalk -
• Operating Temperature -55°C ~ 125°C (TA)
• Package / Case 28-CLCC
• Supplier Device Package 28-LCCC (11.43x11.43)
• Base Part Number ADG507A
