ADG506AKN

ADG506AKN Overview

Product belongs to the ADG506A series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style Number of channels: 16 Channel Configuration 1 x 16 Power-off control: 470 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 10.8 V to 16.5 V supply voltage for reliable performance. Maximum supply voltage of 16.5 V PDIP-28 300 ns is 23 microseconds. Maximum dual supply voltage: +/- 16.5 V Single Supply Dual Supply supply type Max on-resistance of 500 Ohms Maximum off time: 450 ns Maximum on-time: 450 ns

ADG506AKN Image

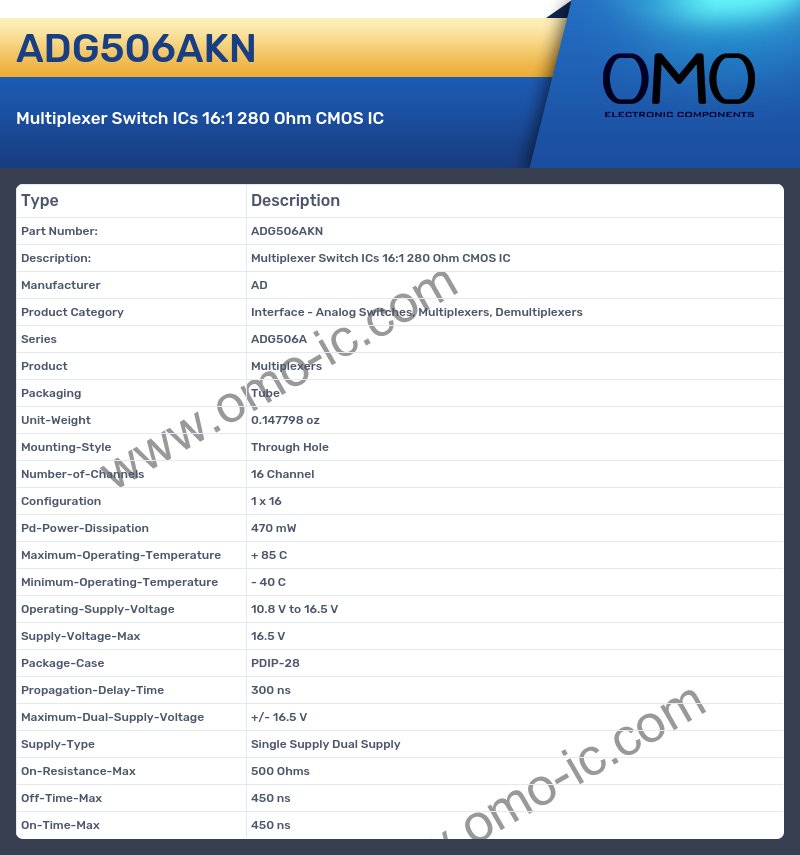

ADG506AKN Specifications

• Manufacturer AD
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG506A
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Number-of-Channels 16 Channel
• Configuration 1 x 16
• Pd-Power-Dissipation 470 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 10.8 V to 16.5 V
• Supply-Voltage-Max 16.5 V
• Package-Case PDIP-28
• Propagation-Delay-Time 300 ns
• Maximum-Dual-Supply-Voltage +/- 16.5 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 500 Ohms
• Off-Time-Max 450 ns
• On-Time-Max 450 ns
