ADG417BNZ

ADG417BNZ Overview

Product belongs to the ADG417 series. Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style Configuration 1 x SPST Power-off control: 35 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 5 V PDIP-8 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 35 Ohms Maximum off time: 100 ns 1 Switch switch functionality Maximum on-time: 160 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA

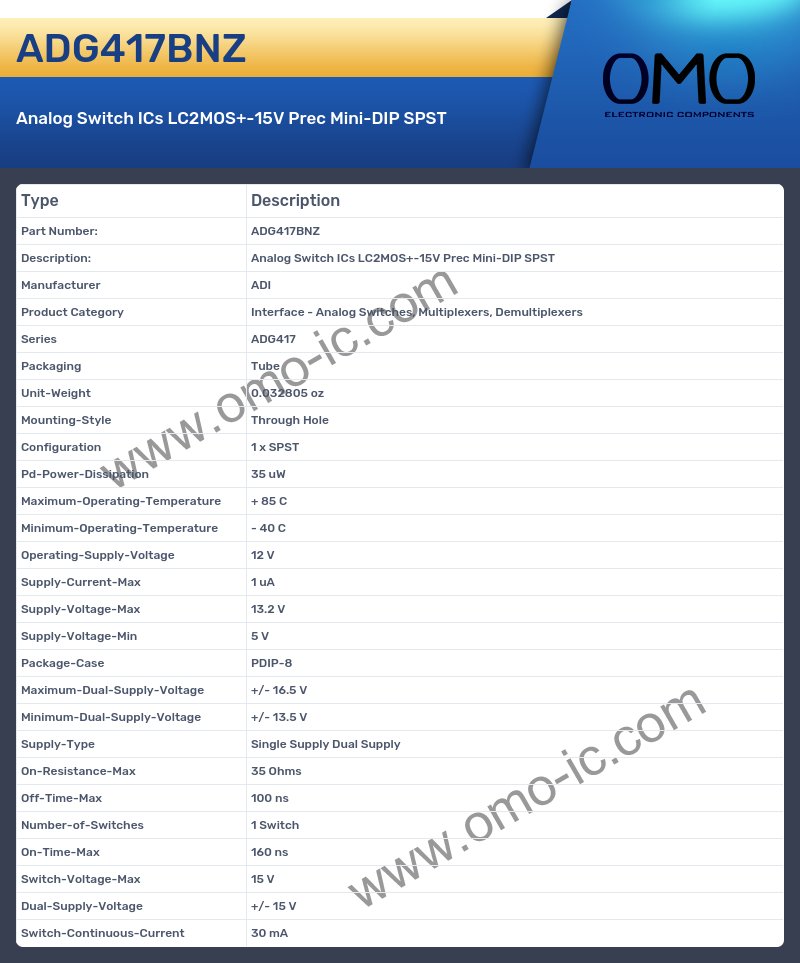

ADG417BNZ Image

ADG417BNZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG417
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Configuration 1 x SPST
• Pd-Power-Dissipation 35 uW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Supply-Current-Max 1 uA
• Supply-Voltage-Max 13.2 V
• Supply-Voltage-Min 5 V
• Package-Case PDIP-8
• Maximum-Dual-Supply-Voltage +/- 16.5 V
• Minimum-Dual-Supply-Voltage +/- 13.5 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 35 Ohms
• Off-Time-Max 100 ns
• Number-of-Switches 1 Switch
• On-Time-Max 160 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 15 V
• Switch-Continuous-Current 30 mA
