ADG409BR

ADG409BR Overview

Product belongs to the ADG409 series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Number of channels: 4 Channel Configuration 2 x 4 Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply voltage of 32 V SOIC-16 130 ns is 23 microseconds. Maximum dual supply voltage: +/- 22 V Single Supply Dual Supply supply type Max on-resistance of 90 Ohms Maximum off time: 60 ns Maximum on-time: 140 ns

ADG409BR Image

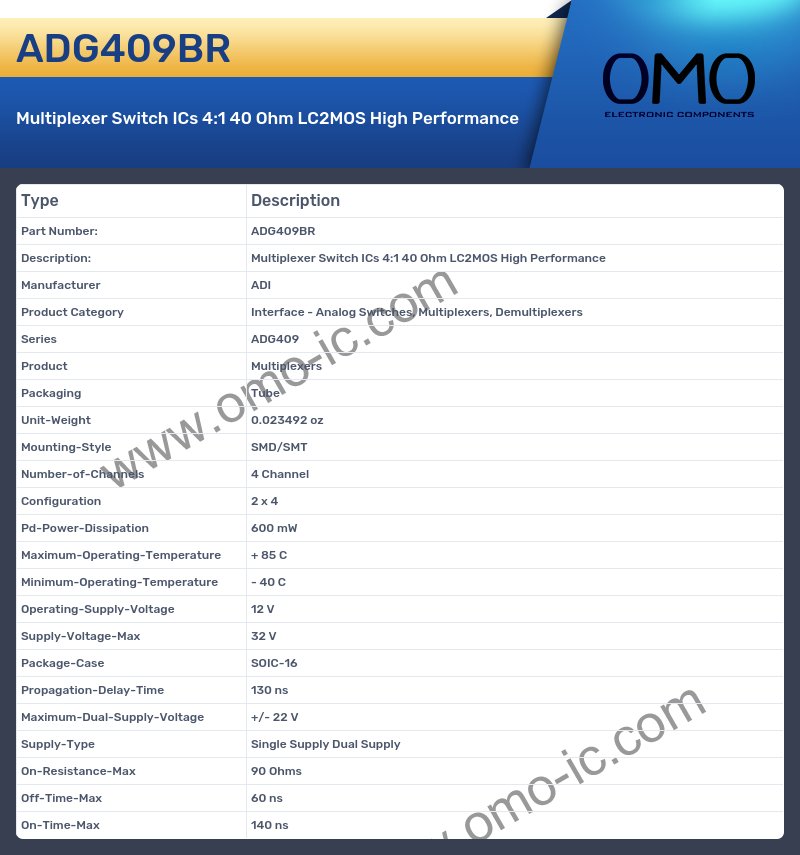

ADG409BR Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG409
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 4 Channel
• Configuration 2 x 4
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Supply-Voltage-Max 32 V
• Package-Case SOIC-16
• Propagation-Delay-Time 130 ns
• Maximum-Dual-Supply-Voltage +/- 22 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 90 Ohms
• Off-Time-Max 60 ns
• On-Time-Max 140 ns
