| Mfr. #: | ADG201HSJN |
|---|---|
| Produttore: | Analog Devices Inc. |
| Descrizione: | Analog Switch ICs QUAD HIGH SPEED SWITCH IC |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | ADG201HSJN Scheda dati |
Product belongs to the ADG201HS series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style Configuration 4 x SPST Power-off control: 240 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 10.8 V to 16.5 V supply voltage for reliable performance. Maximum supply current: 10 mA Maximum supply voltage of 16.5 V Minimum supply voltage is 10.8 V PDIP-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 50 Ohms Maximum off time: 50 ns 4 Switch switch functionality Maximum on-time: 50 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 20 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

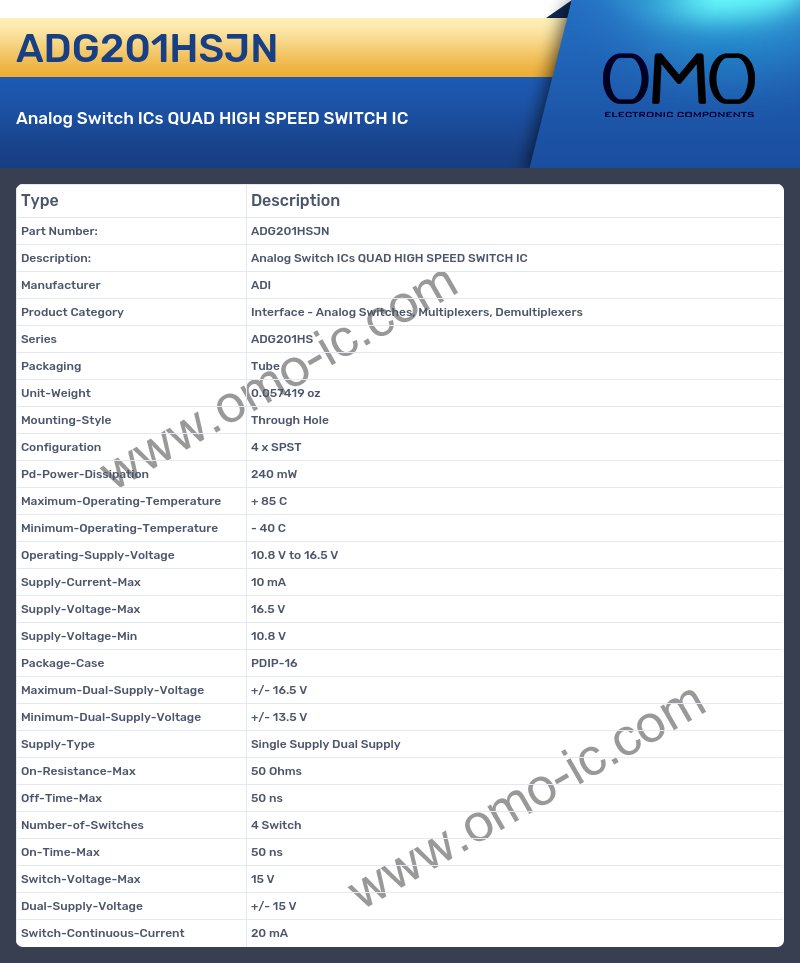

ADG201HSJN Specifications
