ADG1423BRMZ

ADG1423BRMZ Overview

Product belongs to the ADG1423 series. Tube is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style Configuration 2 x SPST Power-off control: 1.8 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 190 uA Maximum supply voltage of 16.5 V Minimum supply voltage is 5 V MSOP-10 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 5 V Single Supply Dual Supply supply type Max on-resistance of 2.4 Ohms Maximum off time: 145 ns 2 Switch switch functionality Maximum on-time: 145 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 185 mA

ADG1423BRMZ Image

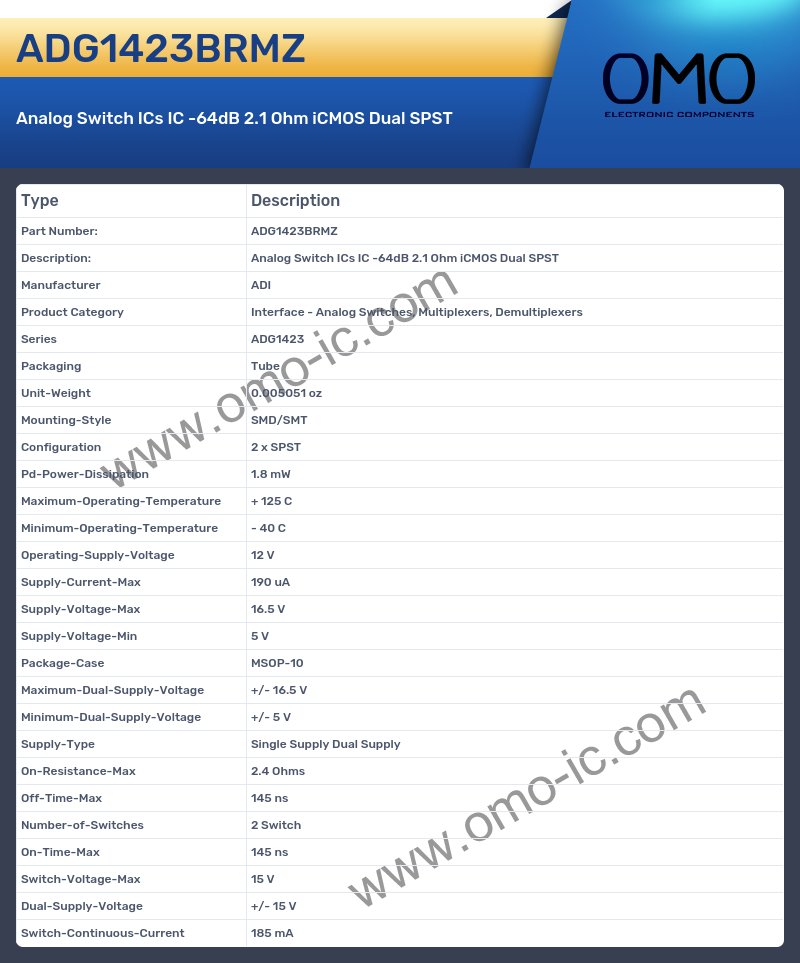

ADG1423BRMZ Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG1423
• Packaging Tube
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Configuration 2 x SPST
• Pd-Power-Dissipation 1.8 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Supply-Current-Max 190 uA
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 5 V
• Package-Case MSOP-10
• Maximum-Dual-Supply-Voltage +/- 16.5 V
• Minimum-Dual-Supply-Voltage +/- 5 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 2.4 Ohms
• Off-Time-Max 145 ns
• Number-of-Switches 2 Switch
• On-Time-Max 145 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 15 V
• Switch-Continuous-Current 185 mA
