ADF7021BCPZ Overview

Product belongs to the ADF7021 series. Type: TxRx Only Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-48 EP This product's 80MHz ~ 650MHz, 862MHz ~ 950MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 862 MHz to 950 MHz Sensitivity: -130dBm Voltage Supply Range: 2.3 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 32.8kbps . Serial Interfaces: SPI, UART 13dBm Current receiving is 17.5mA ~ 26.4mA General ISM is the RF family standard. 2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK modulated The device has GPIOs. 13.5mA ~ 32.3mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 3.6 V supply voltage for reliable performance. 3-Wire Serial interface type Maximum data rate is 32.8 kbps The EVAL-ADF70XXMBZ2. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.3 V 2FSK 3FSK 4FSK MSK are the supported modulation formats.

ADF7021BCPZ Image

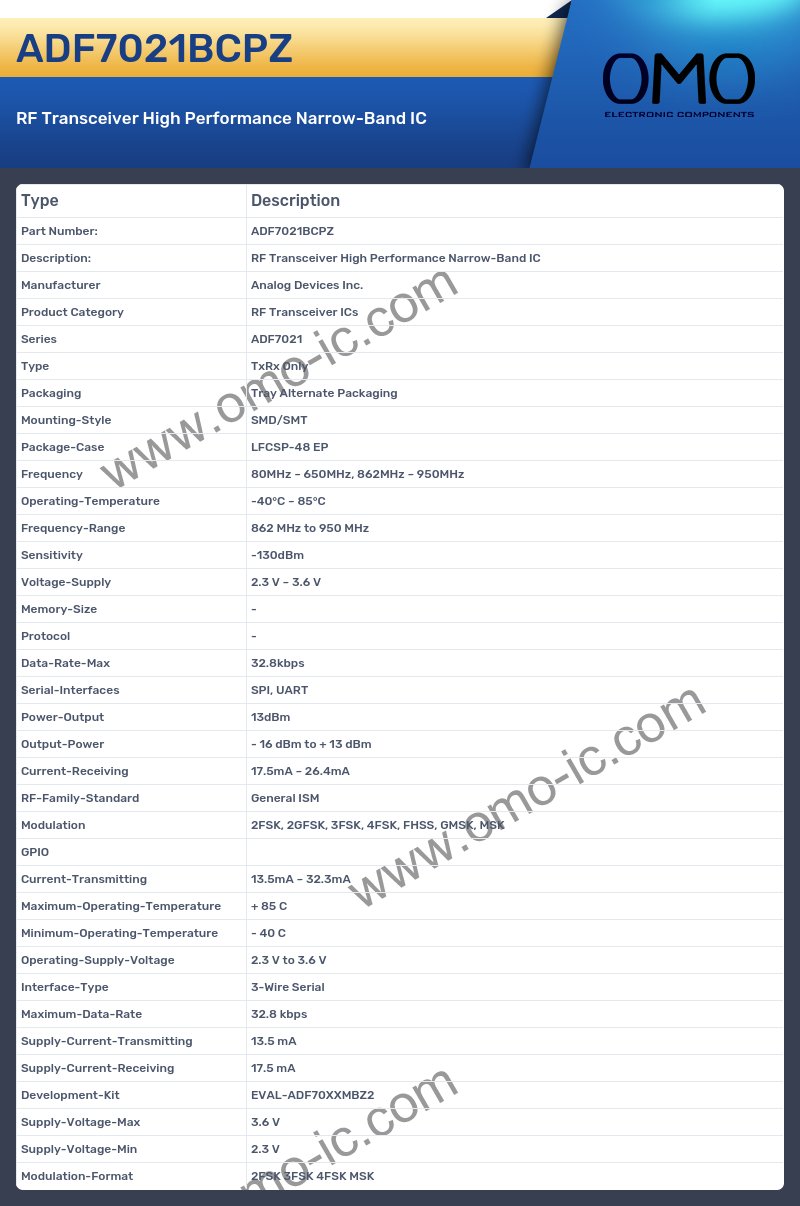

ADF7021BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Transceiver ICs
• Series ADF7021
• Type TxRx Only
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-48 EP
• Frequency 80MHz ~ 650MHz, 862MHz ~ 950MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 862 MHz to 950 MHz
• Sensitivity -130dBm
• Voltage-Supply 2.3 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 32.8kbps
• Serial-Interfaces SPI, UART
• Power-Output 13dBm
• Output-Power - 16 dBm to + 13 dBm
• Current-Receiving 17.5mA ~ 26.4mA
• RF-Family-Standard General ISM
• Modulation 2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK
• GPIO
• Current-Transmitting 13.5mA ~ 32.3mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 3.6 V
• Interface-Type 3-Wire Serial
• Maximum-Data-Rate 32.8 kbps
• Supply-Current-Transmitting 13.5 mA
• Supply-Current-Receiving 17.5 mA
• Development-Kit EVAL-ADF70XXMBZ2
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.3 V
• Modulation-Format 2FSK 3FSK 4FSK MSK
